Key Features:
- Moisture-Resistant Stainless Steel Construction – Ensures durability and corrosion resistance in hostile environments.
- Designed as a Replacement for NCI® Mark III – Offers seamless compatibility and enhanced performance in existing installations.
- IP67 Environmentally Sealed – Protects against moisture, dust, and harsh conditions, making it ideal for industrial applications.
- Wide Capacity Range –
- 10 lb to 25 lb cells support base sizes up to 8 × 8 inches.
- 50 lb to 200 lb cells support base sizes up to 12 × 12 inches.
- Highly Accurate & Reliable –
- 0.03% nonlinearity ensures precise weight measurements.
- 0.02% hysteresis guarantees consistent performance.
- Low Deflection for Stability –
- 10 to 15 lb models: 0.0014 in deflection.
- 25 to 200 lb models: 0.0010 in deflection.
- Polyurethane Shielded Cable for Protection –
- Comes with 10 ft of durable polyurethane jacketed cable.
- Certified for Industrial Compliance – cFMus approved for high-quality performance and safety.
- One-Year Limited Warranty – Ensuring manufacturer-backed reliability and support.
VPG Sensortronics 60051 Load Cell Specifications
| Specification | | Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Output Resistance |
| 349 to 355 ohm |
| Input Resistance |
| 380 to 450 ohm |
| Material/Finish |
| Stainless steel |
| Temperature Range (Operating) |
| 0 °F to 150 °F (-18 °C to 65 °C) |
| Seal Type |
| Environmentally sealed, IP67 |
| Safe Overload |
| 150% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V maximum) |
| Nonlinearity |
| 0.03% full scale |
| Hysteresis |
| 0.02% full scale |
| Insulation Resistance |
| 5,000 megohm |
| Deflection at Capacity |
| 10 to 15 lb: 0.0014 in
25 to 200 lb: 0.0010 in |
| Cable Length |
| 10 ft |
| Cable Diameter |
| 0.200 in Polyurethane jacket |
| Cable Color Code |
| Red: +Excitation, Black: –Excitation, Green: +Signal, White: –Signal |
| Warranty |
| One-year limited |
| Approvals |
| cFMus |

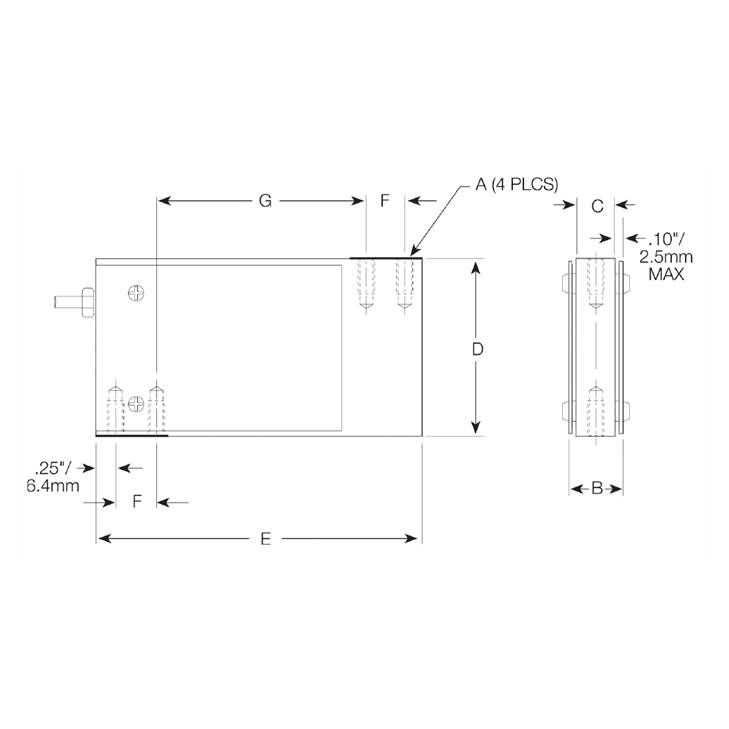

60051 Load Cell Dimensions
| Rated Capacity (lb/in) | A | | B | C | D | E | F | G |
|---|
| 10 to 25 | 1/4-28 UNF |
| 0.70 | 0.50 | 2.50 | 4.63 | 0.75 | 2.62 |
| 50 to 200 | 1/4-28 UNF |
| 0.95 | 0.75 | 2.50 | 4.63 | 0.75 | 2.62 |
Upgrade to the 60051 Load Cell for Precision in Harsh Environments!
The VPG Sensortronics 60051 Stainless Steel Load Cell delivers exceptional accuracy, durability, and moisture resistance. Designed as a direct replacement for NCI® Mark III, it’s perfect for platform scales, industrial weighing, and more. Order now from SellEton Scales!
