Key Features:
- High Precision & Low Profile:
Engineered for low-profile scales and process weighing in both Legal for Trade and non-legal for Trade applications, ensuring reliable and accurate measurements. - Durable Stainless Steel Construction:
Built with premium stainless steel for superior corrosion resistance and durability in harsh environments. - Robust Environmental Protection:
Features an environmentally sealed design (IP67 rated) to protect against moisture, dust, and contaminants. - Safe Overload & Sideload Performance:
Safely supports 150% full-scale overload and 100% full-scale sideload, ensuring stable operation even under heavy load conditions. - Consistent Electrical Performance:
Delivers a full-scale output of 3.0 mV/V with minimal combined error (0.02% FS) and non-repeatability (0.01% FS). - Flexible Installation:
Comes with a 20 ft cable (Red +Excitation, Black –Excitation, Green +Signal, White –Signal) for easy integration into weighing systems.

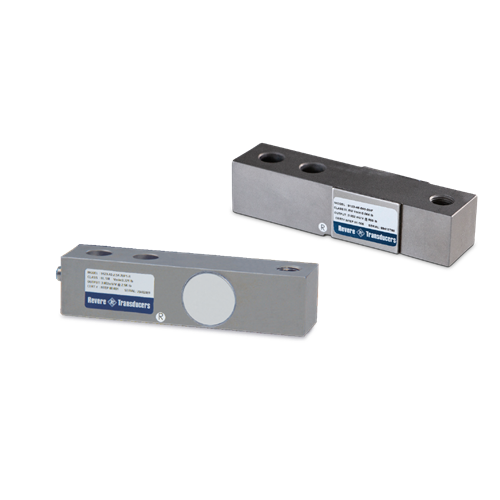

9123 Load Cell Specifications
| Specification |
| Details |
|---|
| Full-Scale Output |
| 3.0 mV/V |
| Output Resistance |
| 350 (±3.5) ohm |
| Input Resistance |
| 350 (±3.5) ohm |
| Material/Finish |
| Stainless steel |
| Temperature |
| Compensated & Operating: 0°F to 150°F |
| Seal Type |
| Environmentally sealed, IP67 |
| Safe Overload |
| 150% full scale |
| Safe Sideload |
| 100% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V max) |
| Combined Error |
| 0.02% full scale |
| Non-Repeatability |
| 0.01% full scale |
| Insulation Resistance |
| 5,000 megohm |
| Cable Length |
| 20 ft |
| Cable Color Code |
| Red (+Excitation), Black (–Excitation), Green (+Signal), White (–Signal) |
| Warranty |
| One-year limited |
| Approvals |
| cFMus, NTEP |
9123 Load Cell Dimensions (inches)
| Rated Capacity |
| C | H | H1 | L | L1 | L2 | L3 | L4 | T | W |
|---|
| 250 to 5,000 lb (SE) |
| 0.53 | 1.23 | 0.67 | 5.12 | 0.62 | 1.00 | 3.00 | 2.25 (1/2-20 UNF) | 1.23 | |
| 5,000 to 15,000 lb |
| 0.78 | 1.45 | 0.70 | 6.75 | 0.75 | 1.50 | 3.75 | 3.12 (3/4-16 UNF) | 1.50 | |
| 20,000 lb |
| 1.06 | 1.95 | 0.98 | 8.75 | 1.00 | 2.00 | 4.75 | 4.00 (1-12 UNF) | 1.95 | |
Note: For capacities from 250 lb to 2,000 lb, the load cell features an integral foot design.
Enhance your weighing system with the VPG Revere 9123 Load Cell. Its robust construction, precise performance, and versatile application make it the ideal choice for high-accuracy, low-profile industrial scales. Order today and experience the superior reliability of VPG Revere technology!
