Key Features:
- Stainless Steel Construction for High Durability – Designed to withstand tough industrial environments, providing high accuracy and long-term reliability.
- Welded-Seal Protection (IP67 Rated) – Fully sealed against moisture, dust, and contaminants, ensuring optimal performance in harsh conditions.
- Low Profile, High Precision Design – Ensures stable and accurate measurements in industrial weighing applications.
- Ideal for Various Applications – Used in platform scales, industrial process weighing, and material testing.
- Safe Overload Protection – Can handle 150% full-scale overload, preventing damage under high-stress conditions.
- Minimal Deflection for Accuracy – Offers a deflection at the capacity of just 0.4 mm, ensuring stable weight readings.
- Long Cable for Easy Installation – Comes with a 10 ft cable, making integration into weighing systems quick and efficient.
- Certified for Legal Trade & Industrial Applications – NTEP and cFMus-approved, ensuring compliance with regulated weighing processes.
Available Capacities: 20 kg to 200 kg
Warranty: One-year limited

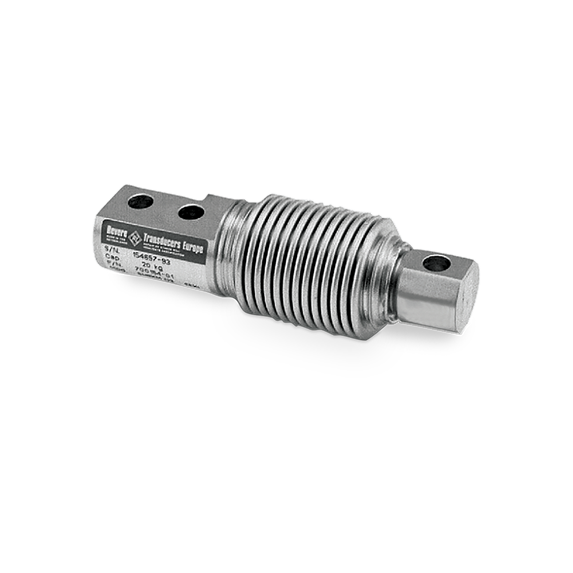

SHB Load Cell Specifications
| Specification |
| Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Output Resistance |
| 350 (±3.5) ohm |
| Input Resistance |
| 460 (±3.5) ohm |
| Material/Finish |
| Stainless steel |
| Temperature Compensation |
| 14°F to 104°F (-10°C to 40°C) |
| Operating Temperature |
| 0°F to 150°F (-18°C to 65°C) |
| Seal Type |
| Welded-Seal, IP67 |
| Safe Overload |
| 150% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V max) |
| Combined Error |
| 0.02% full scale (SHB-A3) |
| Non-Repeatability |
| 0.01% full scale |
| Insulation Resistance |
| 5,000 megohm |
| Deflection at Capacity |
| 0.4 mm |
| Cable Length |
| 10 ft |
| Cable Color Code |
| Green (+Excitation), Black (-Excitation), White (+Signal), Red (-Signal) |
SHB Load Cell Dimensions (mm)
| Rated Capacity (kg) |
| A | B | C | D | E | F | G | H | J | K | M | N |
|---|
| 20 to 200 |
| 120.0 | 38.0 | 22.9 | 31.7 | 21.2 | 42.0 | 10.0 | 82.0 | 18.0 | 20.0 | 20.0 | 8.20 |
Enhance your industrial weighing system with the VPG Revere SHB Load Cell. Order today for unmatched precision, durability, and industrial-grade performance!
