Key Features:
- Ultra-Low Profile Design – Ideal for cost-effective platform scales and compact weighing applications.
- Two-Beam Machined Technology – Ensures high performance and durability at an affordable price.
- Lightweight & Durable Aluminum Construction – Anodized aluminum finish provides corrosion resistance and long-term stability.
- IP66 Environmental Protection – Sealed against dust, moisture, and water jets, making it suitable for challenging environments.
- Versatile Weight Capacity – Available in 3 kg to 35 kg, catering to a wide range of precision weighing applications.
- Exceptional Accuracy & Stability –
- 0.02% combined error for high-precision weight measurements
- Minimal deflection ensures steady readings
- Safe Overload Protection – Can withstand 150% of full-scale overload, preventing damage from excessive weight.
- Flexible Cable Options – Available with either 1.5 ft or 10 ft cable, offering installation flexibility.
- Supports Large Platforms – Compatible with platform sizes up to 13.78 × 13.78 in.
- Certified & Industry-Approved – NTEP, cFMus, OIML certified, with Ex approval available upon request.
- One-Year Limited Warranty – Providing reliability and peace of mind.

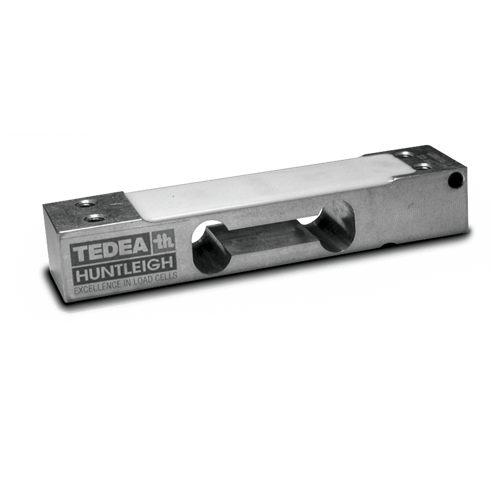

VPG Tedea-Huntleigh 1022 Load Cell Specifications
| Specification | | Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Output Resistance |
| 350 (±3) ohm |
| Input Resistance |
| 415 (±15) ohm |
| Material/Finish |
| Anodized aluminum |
| Temperature Range (Compensated) |
| 14 °F to 104 °F (-10 °C to 40 °C) |
| Temperature Range (Operating) |
| 0 °F to 150 °F (-18 °C to 65 °C) |
| Seal Type |
| Environmentally sealed, IP66 |
| Safe Overload |
| 150% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V maximum) |
| Combined Error |
| 0.02% full scale |
| Insulation Resistance |
| 2,000 megohm |
| Cable Length |
| 1.5 ft / 10 ft |
| Cable Diameter |
| 0.140 in PVC jacket |
| Cable Color Code |
| Green: +Excitation, Black: –Excitation, Red: +Signal, White: –Signal |
| Max Platform Size |
| 13.78 × 13.78 in |
| Warranty |
| One-year limited |
| Approvals |
| cFMus, NTEP, OIML, Ex (Available upon request) |

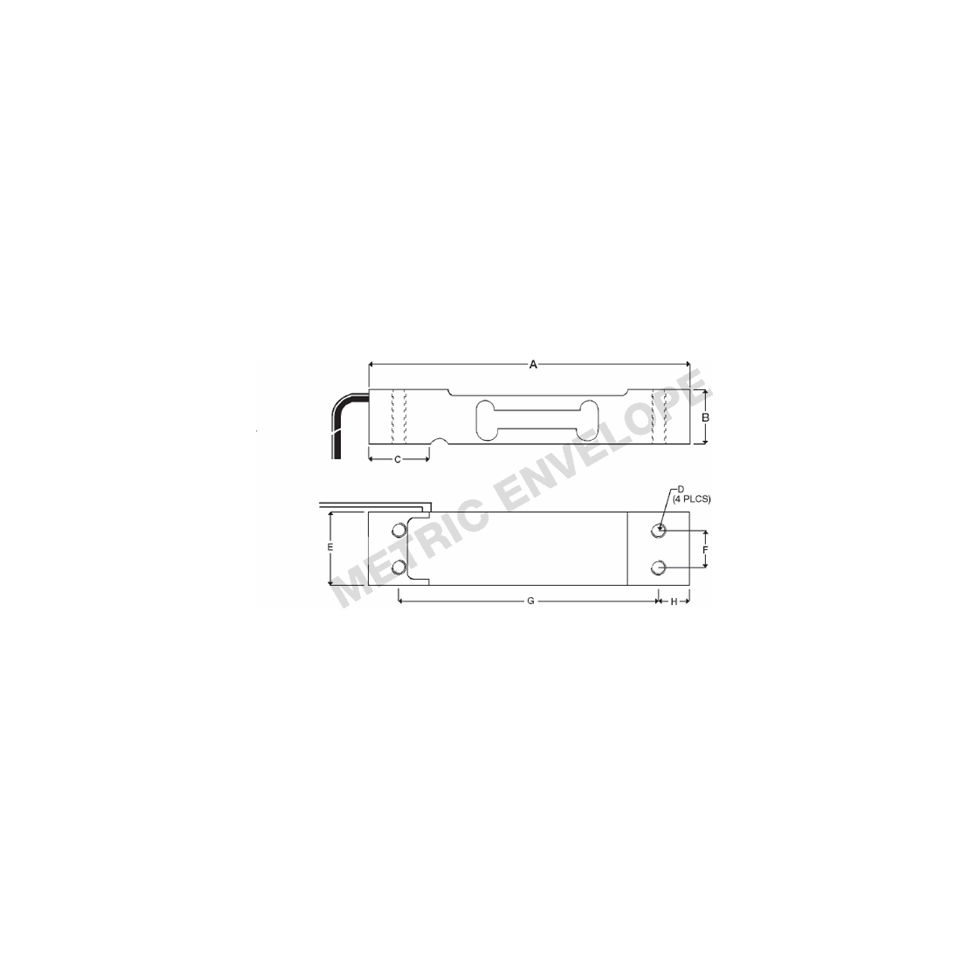

1022 Load Cell Dimensions
| Rated Capacity (kg/mm) | A | B | C | | D | E | F | G | H |
|---|
| 3 to 7 | 130.0 | 22.0 | 25.0 |
| M6 × 1.0 | 25.4 | 15.0 | 106.0 | 12.0 |
| 10 to 30 | 130.0 | 22.0 | 25.0 |
| M6 × 1.0 | 30.0 | 15.0 | 106.0 | 12.0 |
| 35 | 130.0 | 22.0 | 25.0 |
| M6 × 1.0 | 40.0 | 15.0 | 106.0 | 12.0 |
Upgrade Your Weighing System with the 1022 Load Cell!
The VPG Tedea-Huntleigh 1022 Aluminum Single-Point Load Cell is a cost-effective, high-precision solution for low-profile platform scales. With its IP66-rated durability, anodized aluminum construction, and industry certifications, this load cell ensures reliable performance in industrial and commercial settings. Explore the best weighing solutions today at SellEton Scales!
