Key Features:
- High-Capacity Tension & Compression Measurement
- Designed for high-force applications, with capacities ranging from 15,000 lb to 200,000 lb.
- Stainless Steel Construction
- Offers exceptional durability, corrosion resistance, and long-term stability in demanding environments.
- High-Precision Measurement
- Nonlinearity:
- ±0.10% full scale for 15,000 to 30,000 lb
- ±0.15% full scale for 100,000 lb
- ±0.20% full scale for 200,000 lb
- Hysteresis: ±0.15% full scale
- Wide Operating Temperature Range
- Can function from -65°F to 250°F (-54°C to 121°C), making it suitable for harsh industrial conditions.
- Safe Overload Protection
- Can withstand up to 150% of full-scale capacity without losing accuracy.
- Connector Pin Out for Easy Integration
- A: +Excitation
- B: +Sense
- C: -Excitation
- D: -Sense
- E: -Signal
- F: +Signal
Available Capacities: 15,000 lb to 200,000 lb
Warranty: One-year limited

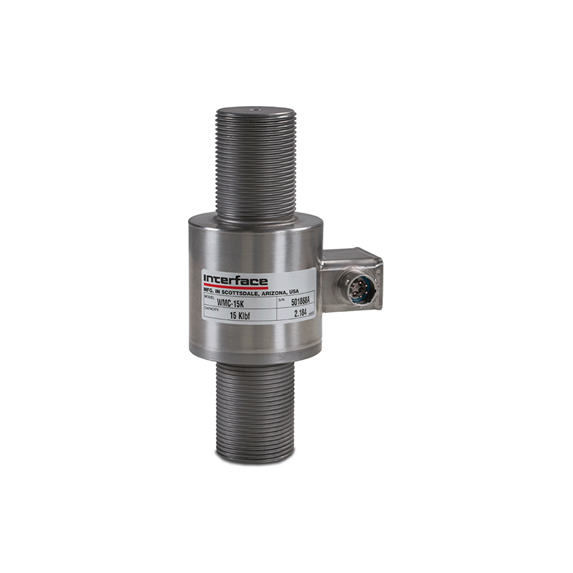

WMC Rod End Load Cell Specifications
| Specification |
| Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Bridge Resistance |
| 350 ohm nominal |
| Material/Finish |
| Stainless steel |
| Temperature |
| Operating: -65°F to 250°F (-54°C to 121°C) |
| Safe Overload |
| 150% full scale |
| Rated Excitation |
| 15 VDC max |
| Nonlinearity |
| 15,000 to 30,000 lb: ±0.10% full scale
100,000 lb: ±0.15% full scale
200,000 lb: ±0.20% full scale |
| Hysteresis |
| ±0.15% full scale |
| Insulation Resistance |
| >5,000 megohm |
| Connector Pin Out |
| A: +Excitation
B: +Sense
C: -Excitation
D: -Sense
E: -Signal
F: +Signal |
| Warranty |
| One-year limited |
WMC Rod End Load Cell Dimensions (inches)
| Rated Capacity (lb) | | A | B | C | D | E | F |
|---|
| 15,000 to 50,000 |
| 2.00 | 6.50 | 2.47 | 2.50 | 1.5-12 UNF | 1.01 |
| 100,000 |
| 3.00 | 10.00 | 3.97 | 3.50 | 2.50-12 UNF | 1.28 |
| 200,000 |
| 4.00 | 13.00 | 4.97 | 4.47 | 3.50-8 UNF | 1.36 |
Upgrade your high-force measurement applications with the Interface WMC Rod End Load Cell – designed for durability, accuracy, and reliable tension/compression readings. Order today for superior performance in industrial weighing solutions!
