Key Features:
- High-Precision Single Point Load Cell – Designed for bench scales and replaces the HBK® PW15 for seamless integration.
- Durable Stainless Steel Construction – Offers exceptional corrosion resistance for long-lasting performance.
- IP67 Environmental Protection – Ensures moisture and dust resistance for reliable weighing in demanding environments.
- Wide Capacity Range – Available in 10 kg to 100 kg, suitable for various industrial and commercial weighing needs.
- High Accuracy & Stability – Features 2.0 mV/V full-scale output, combined error of 0.02%, and insulation resistance of 1,000 megohm.
- Superior Overload Protection – Can handle 150% full-scale overload for added durability and longevity.
- Max Platform Size of 15" x 15" – Optimized for compact and medium-sized weighing platforms.
- 10-Foot PVC-Jacketed Cable for Secure Installation – Ensures stable signal transmission in various industrial settings.
- Rated Excitation of 5-10V DC (15V Max) – Provides consistent and accurate readings.
- Certified for Industrial Use – NTEP (11-038) and FM approved, meeting legal trade compliance.
- Two-Year Limited Warranty – Ensuring high-quality standards and long-term reliability.
RLPWM15 Load Cell Specifications
| Specification | | Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Bridge Resistance |
| 350 ohm, nominal |
| Material/Finish |
| Stainless steel |
| Compensated Temperature |
| 14 °F to 104 °F (-10 °C to 40 °C) |
| Operating Temperature |
| 0 °F to 150 °F (-18 °C to 65 °C) |
| Seal Type |
| Environmentally sealed, IP67 |
| Safe Overload |
| 150% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V maximum) |
| Combined Error |
| 0.02% full scale |
| Insulation Resistance |
| 1,000 megohm |
| Cable Length |
| 10 ft |
| Cable Diameter |
| 0.190 in (PVC Jacket) |
| Cable Color Code |
| Blue (+Excitation), Black (–Excitation), White (+Signal), Red (–Signal), Green (+Sense), Grey (–Sense) |
| Max Platform Size |
| 15 × 15 in |
| Warranty |
| Two-year limited |
| Approvals |
| FM, NTEP 11-038 |

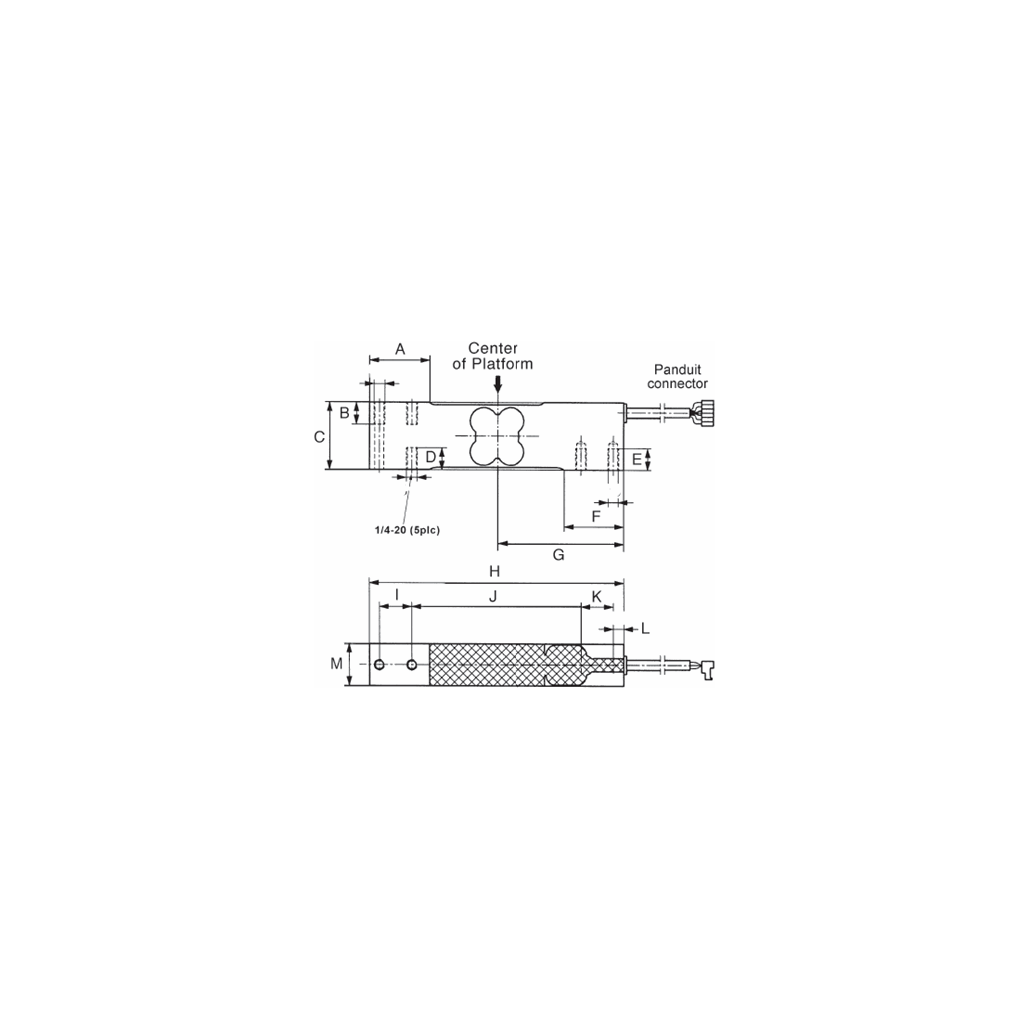

RLPWM15 Load Cell Dimensions
| Rated Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | T |
|---|
| 10 to 100 | 35.0 | 13.0 | 40.0 | 13.0 | 13.0 | 35.0 | 75.0 |
| 150.0 | 19.0 | 100.0 | 19.0 | 6.2 | 25.0 | 1/4-20 UNC |
