Key Features:
- Low-Profile, High-Performance Design – Features a ring torsion type construction, ensuring high precision and stability in industrial applications.
- Stainless Steel Construction – Built for durability and corrosion resistance, making it suitable for harsh environments.
- Hermetically Sealed Protection – IP66/IP68-rated, providing resistance against moisture, dust, and contaminants.
- Wide Capacity Range – Available in capacities from 0.25 T to 10 T, ideal for small and medium platform scales, as well as process weighing.
- Safe Overload & Sideload Protection – Handles 150% full-scale overload and 100% full-scale sideload, ensuring reliability under heavy loads.
- Exceptional Accuracy – Offers a full-scale output of 2.0 mV/V, combined error of 0.02% FS, and high insulation resistance (5,000 megohm).
- Compact and Efficient Design – Low-profile structure allows for easy integration into various weighing systems.
- Certified for Industrial Applications – OIML, NTEP, and FM-approved, making it suitable for regulated weighing processes.
Available Capacities: 0.25 T to 10 T
Warranty: One-year limited
RLC Load Cell Specifications
| Specification |
| Details |
|---|
| Full Scale Output |
| 2.0 mV/V |
| Output Resistance |
| 1,025 (±25) ohm |
| Input Resistance |
| 1,110 (±50) ohm |
| Material/Finish |
| Stainless steel |
| Temperature Compensation |
| 14°F to 104°F (-10°C to 40°C) |
| Operating Temperature |
| 0°F to 150°F (-18°C to 65°C) |
| Seal Type |
| Hermetically sealed, IP66/IP68 |
| Safe Overload |
| 150% full scale |
| Safe Sideload |
| 100% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V max) |
| Combined Error |
| 0.02% full scale |
| Insulation Resistance |
| 5,000 megohm |
| Cable Length |
| 5 m |
| Cable Color Code |
| Pink (+Excitation), Grey (–Excitation), Brown (+Signal), White (–Signal) |
RLC Load Cell Dimensions (inches)
| Rated Capacity (T) |
| D | D1 | D2 | D3 | H | H1 | H2 | H3 | T |
|---|
| 0.25 to 1 |
| 2.76 | 3.15 | 3.84 | 0.40 | 0.99 | 0.60 | 0.04 | 0.37 | M6 (3 x 120°) |
| 2 to 5 |
| 2.76 | 3.15 | 3.84 | 0.60 | 1.18 | 0.79 | 0.24 | 0.33 | M6 (3 x 120°) |
| 10 |
| 3.26 | 3.74 | 4.42 | 0.98 | 1.37 | 0.58 | - | 0.39 | M6 (3 x 120°) |

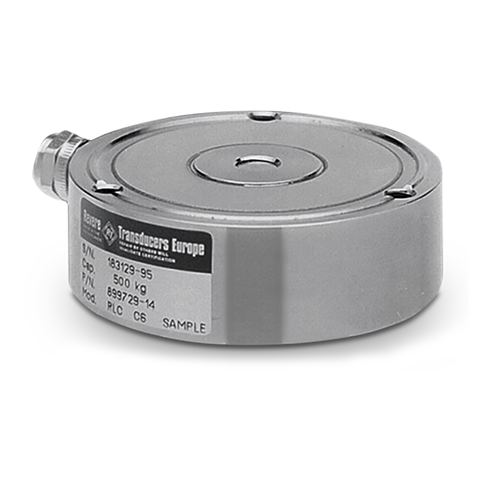

Upgrade your weighing system with the VPG Revere RLC Compression Disk Load Cell. Order today for precision, durability, and industrial-grade performance!
