Key Features:
- High Capacity: Available from 5,000 lb to 250,000 lb, ideal for heavy-duty applications.
- Durable Construction: Made from multi-layer coated (MLC) alloy steel for enhanced durability and corrosion resistance.
- Precision Performance: Full-scale output of 3.0 mV/V with a combined error of just 0.02%, ensuring highly accurate measurements.
- Versatile Applications: Designed for fertilizer, tank, and hopper weighing systems, offering reliable and consistent performance.
- Environmental Protection: IP67-rated environmental sealing ensures resistance to moisture and harsh conditions.
- Safe Overload Protection: Withstands 150% full-scale overload and 100% full-scale sideload, improving safety and longevity.
- Long Cable Length: Equipped with a 30-foot polyurethane-jacketed cable for easy integration into various setups.
- Wide Temperature Range: Operates in conditions from 0 °F to 150 °F (-18 °C to 65 °C), suitable for diverse industrial environments.
- Certified for Compliance: cFMus and NTEP Certified (Approval No. 21-064) for legal trade applications.
- Reliable Warranty: Comes with a two-year limited warranty for added peace of mind.
Specifications:
| Specification | | Details |
|---|
| Full Scale Output |
| 3.0 mV/V |
| Input Resistance |
| 700-770 (±10 to ±14) ohm |
| Output Resistance |
| 700-703 (±4 to ±5) ohm |
| Material/Finish |
| Alloy steel, MLC coated |
| Operating Temperature |
| 0 °F to 150 °F (-18 °C to 65 °C) |
| Compensated Temperature |
| 14 °F to 104 °F (-10 °C to 40 °C) |
| Safe Overload |
| 150% full scale |
| Safe Sideload |
| 100% full scale |
| Rated Excitation |
| 5 to 10 VDC (15 V max) |
| Insulation Resistance |
| 5,000 megohm |
| Seal Type |
| IP67 environmental sealing |
| Cable Length |
| 30 ft (Polyurethane jacket) |
| Warranty |
| Two-year limited |
| Approvals |
| cFMus, NTEP 21-064 |

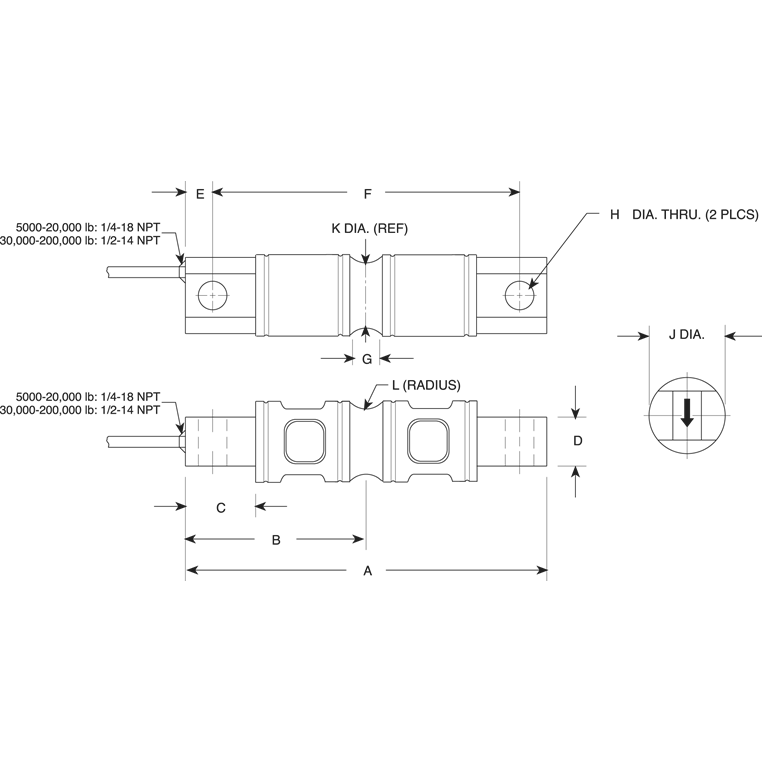

Load Cell Dimensions
| Capacity (lb) | A | B | C | D | E |
| F | G | H | J | K | L |
|---|
| 5,000 to 10,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 |
| 6.88 | 0.62 | 0.66 | 1.70 | 1.48 | 0.50 |
| 20,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 |
| 6.88 | 0.84 | 0.66 | 1.95 | 1.48 | 0.50 |
| 30,000 to 60,000 | 10.25 | 5.12 | 1.88 | 2.37 | 0.88 |
| 8.50 | 1.00 | 1.06 | 3.20 | 2.73 | 1.00 |
| 100,000 | 11.25 | 5.62 | 1.88 | 2.50 | 0.88 |
| 9.50 | 1.00 | 1.06 | 3.50 | 3.24 | 1.50 |
| 150,000 | 11.25 | 5.62 | 1.88 | 2.80 | 0.88 |
| 9.50 | 1.25 | 1.06 | 3.90 | 3.64 | 1.50 |
| 200,000 to 250,000 | 16.10 | 8.05 | 3.05 | 4.60 | 1.55 |
| 13.00 | 1.30 | 1.56 | 5.38 | 5.17 | 2.00 |
Upgrade your weighing system with the Rice Lake RL72020 Load Cell – engineered for precision, durability, and seamless integration into industrial applications. Whether for fertilizer, tank, or hopper weighing, this load cell ensures consistent performance in demanding environments. Order today to enhance your weighing accuracy and operational efficiency!
