Key Features:
- Threaded Hole Design: Engineered for low-profile scales and process weighing applications, ensuring reliable and accurate weight measurement.
- Durable Alloy Steel Construction: Manufactured from high-alloy steel with nickel plating, providing enhanced strength, corrosion resistance, and longevity.
- NTEP Certified for Legal Trade:
- NTEP Certified capacities: 1,000 lb to 10,000 lb
- Non-NTEP Certified capacities: 250 lb, 500 lb, and 20,000 lb
- Environmental Protection: IP67-rated environmental sealing safeguards against moisture, dust, and harsh conditions for long-term performance.
- High-Accuracy Weighing Performance:
- Full-scale output: 3.0 mV/V
- Combined error: 0.02% full scale
- Insulation resistance: 5,000 megohm
- Deflection at capacity:
- 250 to 1,000 lb: 0.013 in
- 2,000 to 3,000 lb: 0.015 in
- 4,000 to 5,000 lb: 0.025 in
- 10,000 lb: 0.032 in
- 20,000 lb: 0.038 in
- Safe Overload and Sideload Protection:
- 150% full-scale overload capacity
- 100% full-scale sideload protection
- Flexible Installation: Comes with a 20-foot polyurethane-jacketed cable, ensuring easy setup and secure connectivity.
- Versatile Applications: Ideal for platform scales, industrial weighing, process weighing, and force measurement systems.
- Certified for Compliance: NTEP Certified (Approval No. 98-043) and cFMus approved, meeting industry standards.
- Reliable Warranty: Backed by a two-year limited warranty, providing confidence in long-term use.

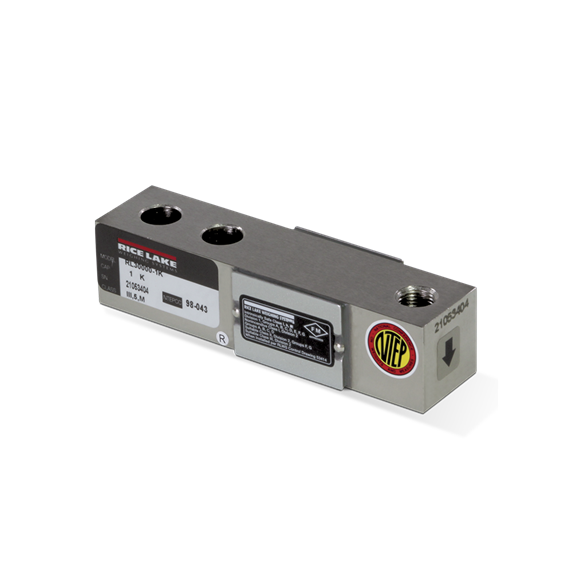

Upgrade your weighing system with the Rice Lake RL30000I Load Cell, designed for precision, durability, and seamless integration into industrial weighing applications. Order today to optimize your operations.
Specifications:
| Specification | | Details |
|---|
| Full Scale Output |
| 3.0 mV/V |
| Bridge Resistance |
| 350 ohm, nominal |
| Material/Finish |
| High-alloy steel, nickel-plated |
| Operating Temperature |
| 0 °F to 150 °F (-18 °C to 65 °C) |
| Compensated Temperature |
| 14 °F to 104 °F (-10 °C to 40 °C) |
| Safe Overload |
| 150% full scale |
| Safe Sideload |
| 100% full scale |
| Rated Excitation |
| 5 to 10 VAC (15 V max) |
| Combined Error |
| 0.02% full scale |
| Insulation Resistance |
| 5,000 megohm |
| Seal Type |
| Environmentally sealed, IP67 |
| Cable Length |
| 20 ft (Polyurethane jacket) |
| Warranty |
| Two-year limited |
| Approvals |
| NTEP 98-043, cFMus |
Load Cell Dimensions
| Capacity (lb) | A1 | A2 | A3 | B | | C | D | E | F | G | H |
|---|
| 250 to 5,000 SE | 1/2-20 UNF | 0.60 | 0.53 | 5.12 |
| 1.25 | 1.25 | 0.62 | 1.00 | 3.00 | 0.50 |
| 5,000 LE to 10,000 | 3/4-16 UNF | 0.75 | 0.78 | 6.75 |
| 1.50 | 1.50 | 0.75 | 1.50 | 3.75 | 0.75 |
| 20,000 | 1-14 UNF | 1.00 | 1.03 | 8.75 |
| 2.00 | 2.00 | 1.00 | 2.00 | 4.75 | 1.00 |
