Are you facing challenges in managing heavy load weighing and protecting your floor scales from industrial damage?
The SellEton SL-800-7x7-30K NTEP Floor Scale is your ultimate solution! Engineered for industrial use, this NTEP-certified floor scale combines durability with precision, ensuring that your warehouse operations are efficient and reliable. This scale is designed to withstand the rigorous demands of a busy warehouse or manufacturing environment, offering accuracy and robust protection against physical impacts.
Key Benefits:
- NTEP Certified Accuracy: This device ensures compliance with industry standards for trade, providing precise measurements with a 30,000 lb capacity.
- Robust Construction: This product features welded steel with a tread plate construction designed to handle heavy-duty applications and resist daily wear and tear.
- Enhanced Protection: This package includes two matching-size Bumper Guards to safeguard the scale from forklifts and other heavy machinery, prolonging the life of your investment.
- Versatile Functionality: Comes with a 20’ long heavy-duty metal shielded cable and an indicator with options for lb/kg, making it adaptable to various industrial needs.
- Convenience Features: Offers a rechargeable battery option and a built-in RS-232 communication port for easy integration into your existing systems.
- Safety Assurance: Equipped with 200% overload protection to prevent damage under excessive loads, ensuring long-term reliability.
- Reliable Power: It comes with an that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
- NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
- Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
- Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.

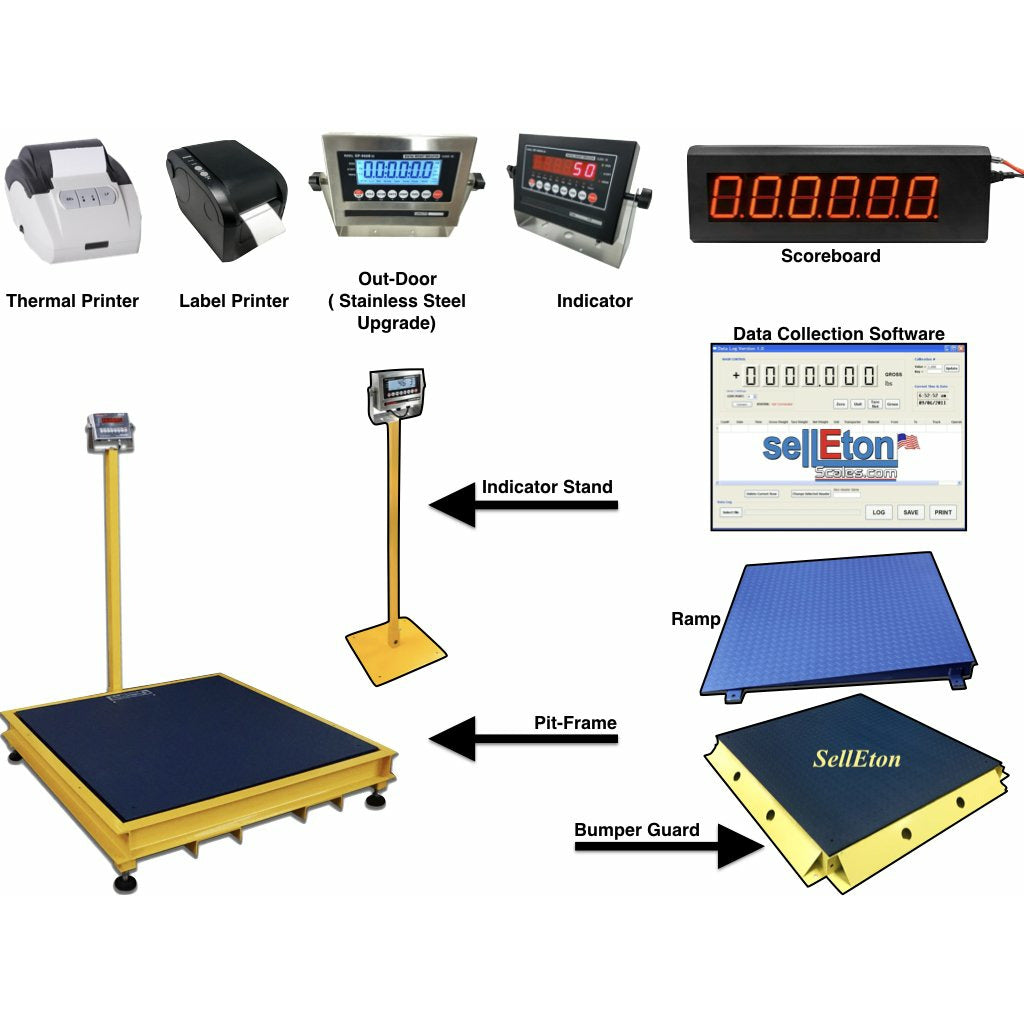

Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
Pit-Frame Installation: Choose between a permanent, installation or versatile for flexible placement.
Data Collection Software: Utilize our to track and manage weight records efficiently and efficiently.
Ramp Access: Implement optional to facilitate simple and safe loading and unloading using carts or .
Indicator Stands: Select from to ensure your indicator is optimally positioned for ease of use and visibility.
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
By integrating the SellEton SL-800-7x7-30K into your operation, you’ll streamline your processes and experience peace of mind, knowing that your scales are protected and your measurements are accurate. The added Bumper Guards are a game-changer, offering the protection needed to keep your scale in top condition, even in the busiest settings. Enhance your industrial environment today and feel confident in the accuracy and durability of your equipment. Invest in SellEton's NTEP Certified Industrial Floor Scale and elevate the efficiency and safety of your operations!
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
