SellEton SL 917 R NTEP Low Profile Drum Scale - 2.5'x2.5' to 4'x4' Platform Sizes for Accurate Barrel Weighing | Industrial & Warehouse Use | Shipping & Logistics Scale

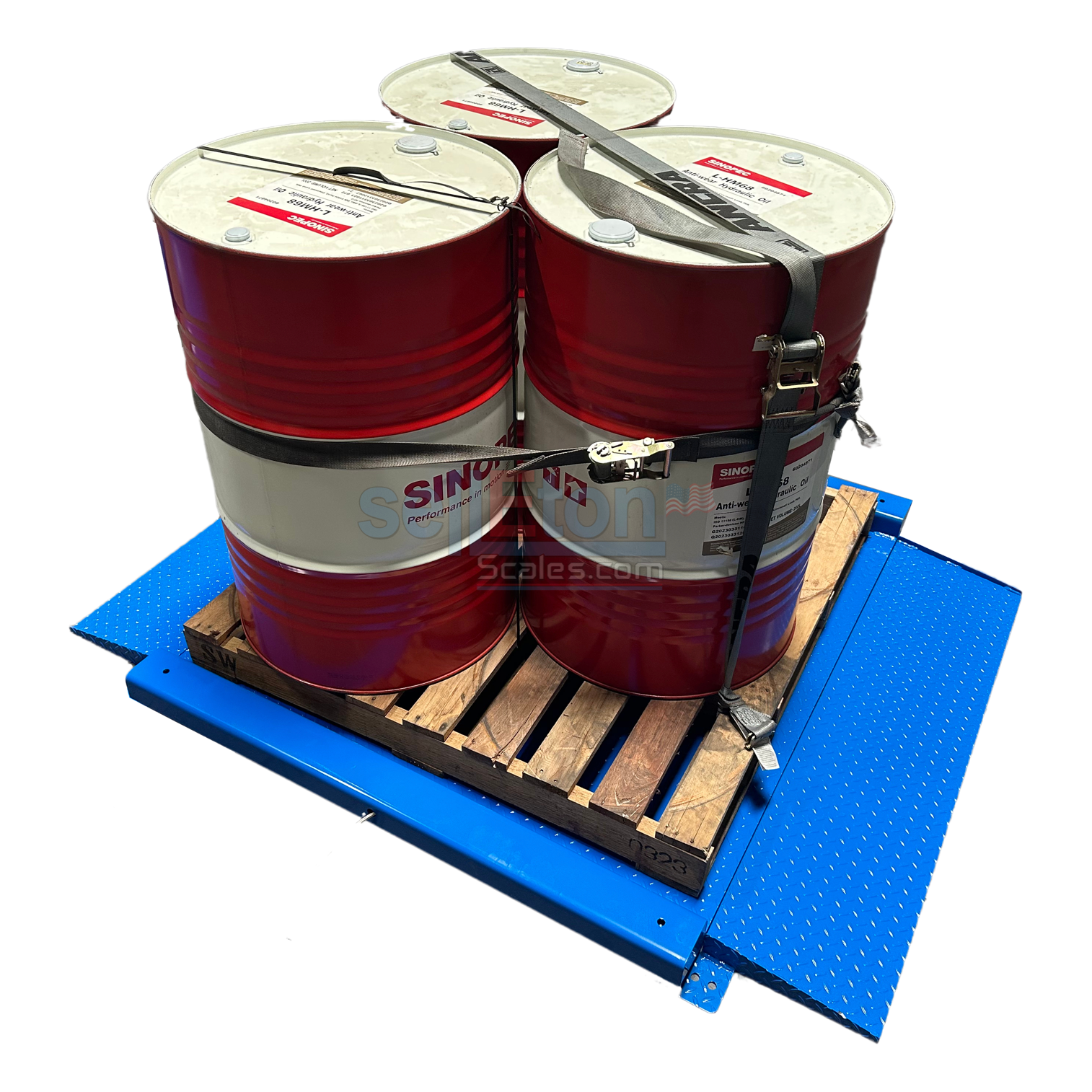

Ever struggled with the hassle of weighing large, heavy barrels?

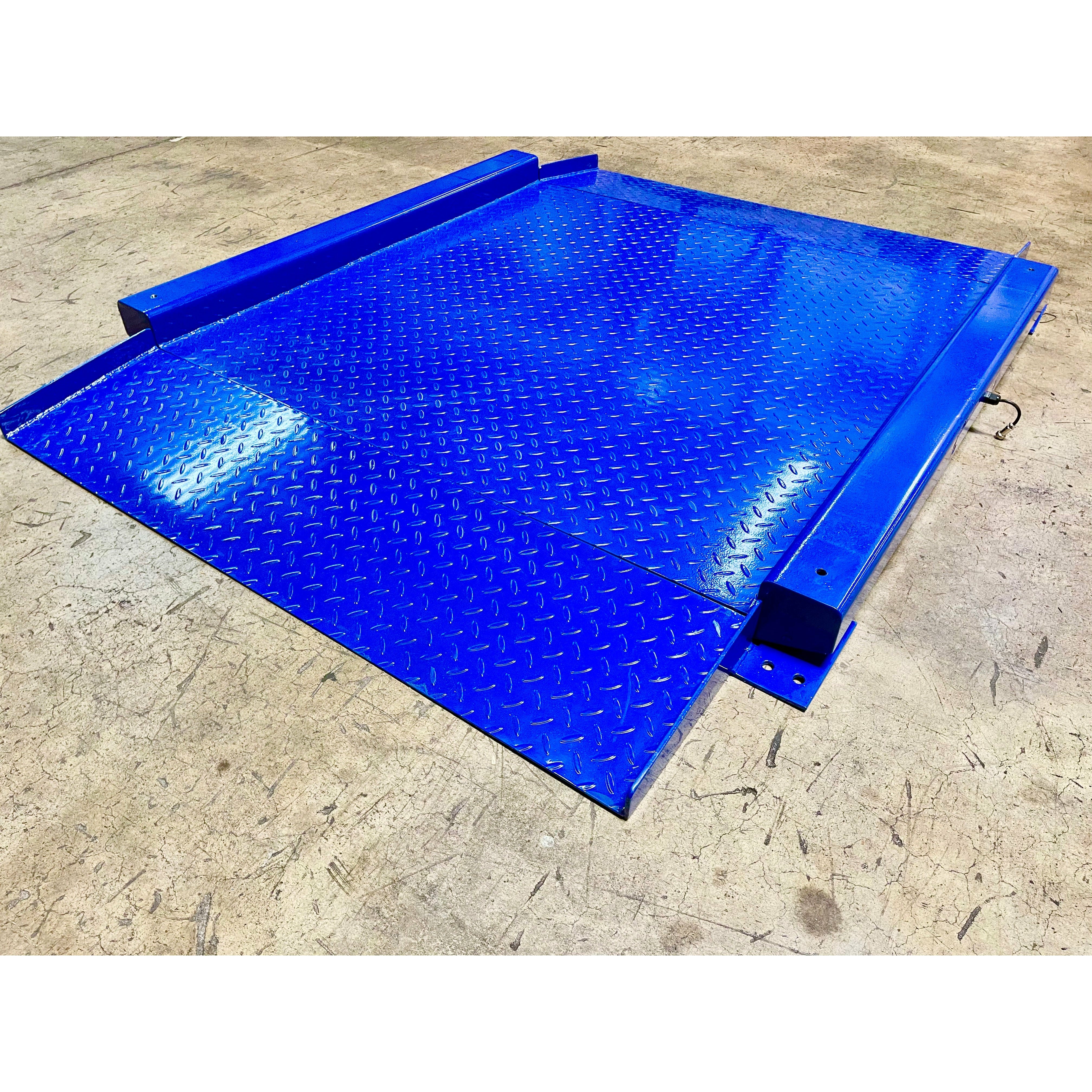

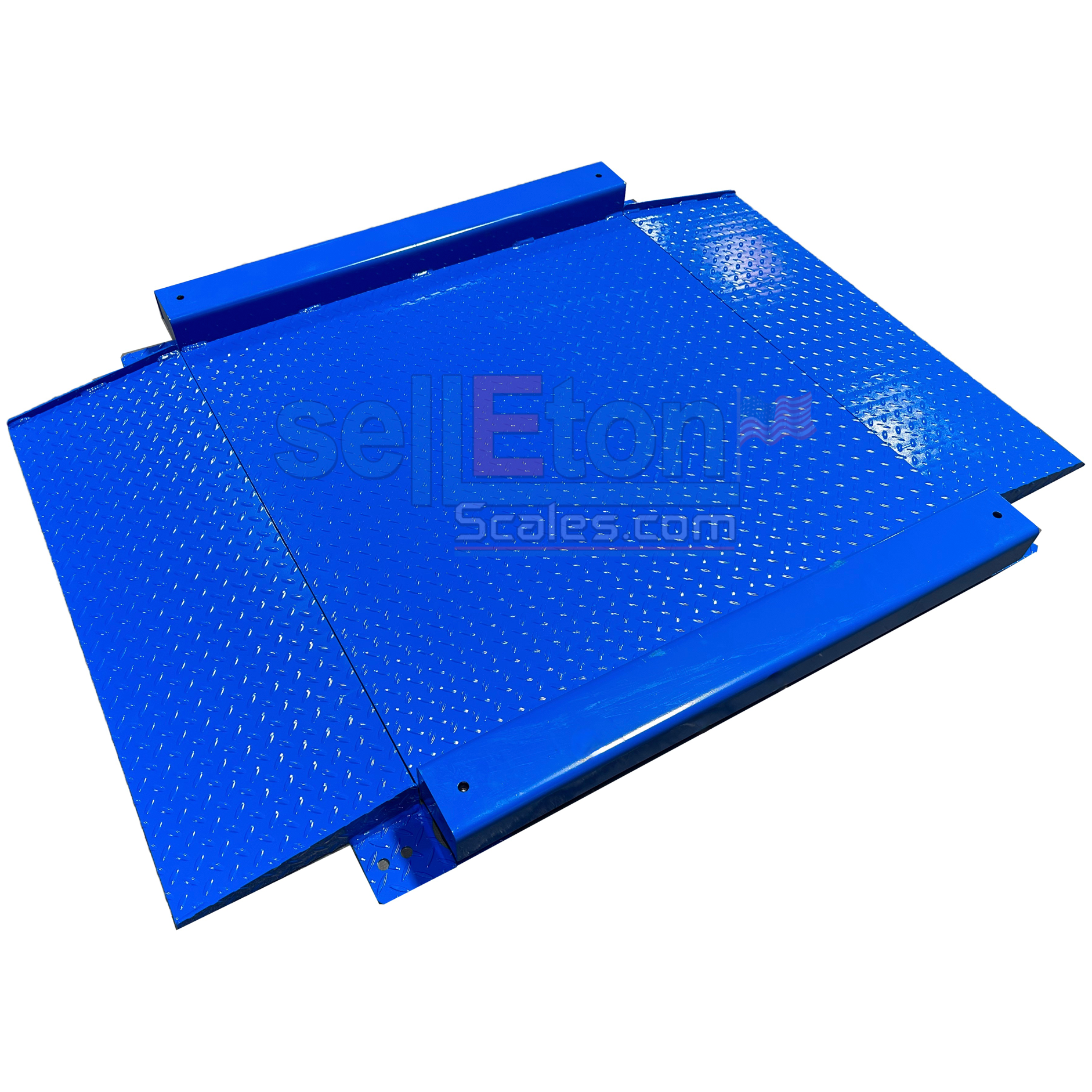

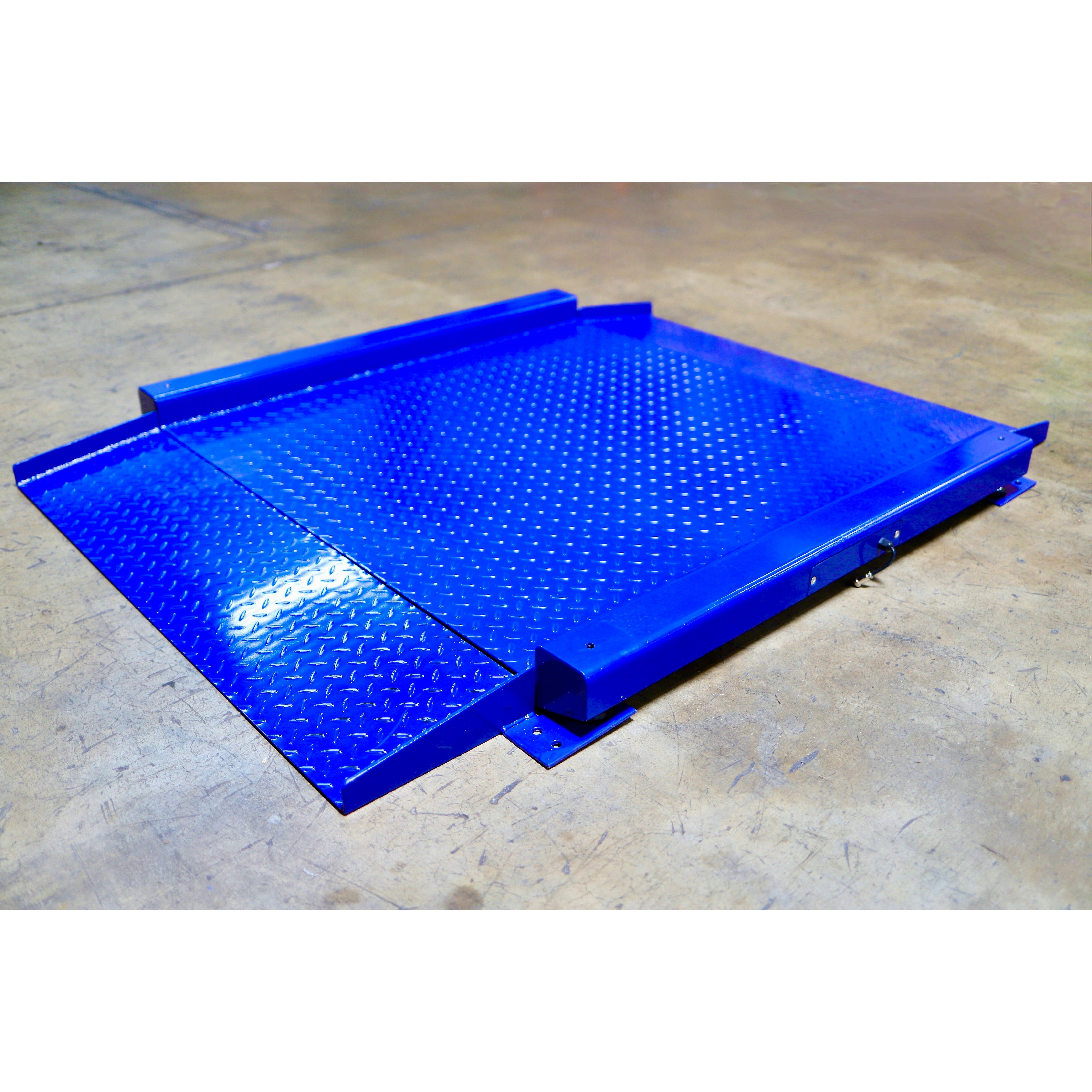

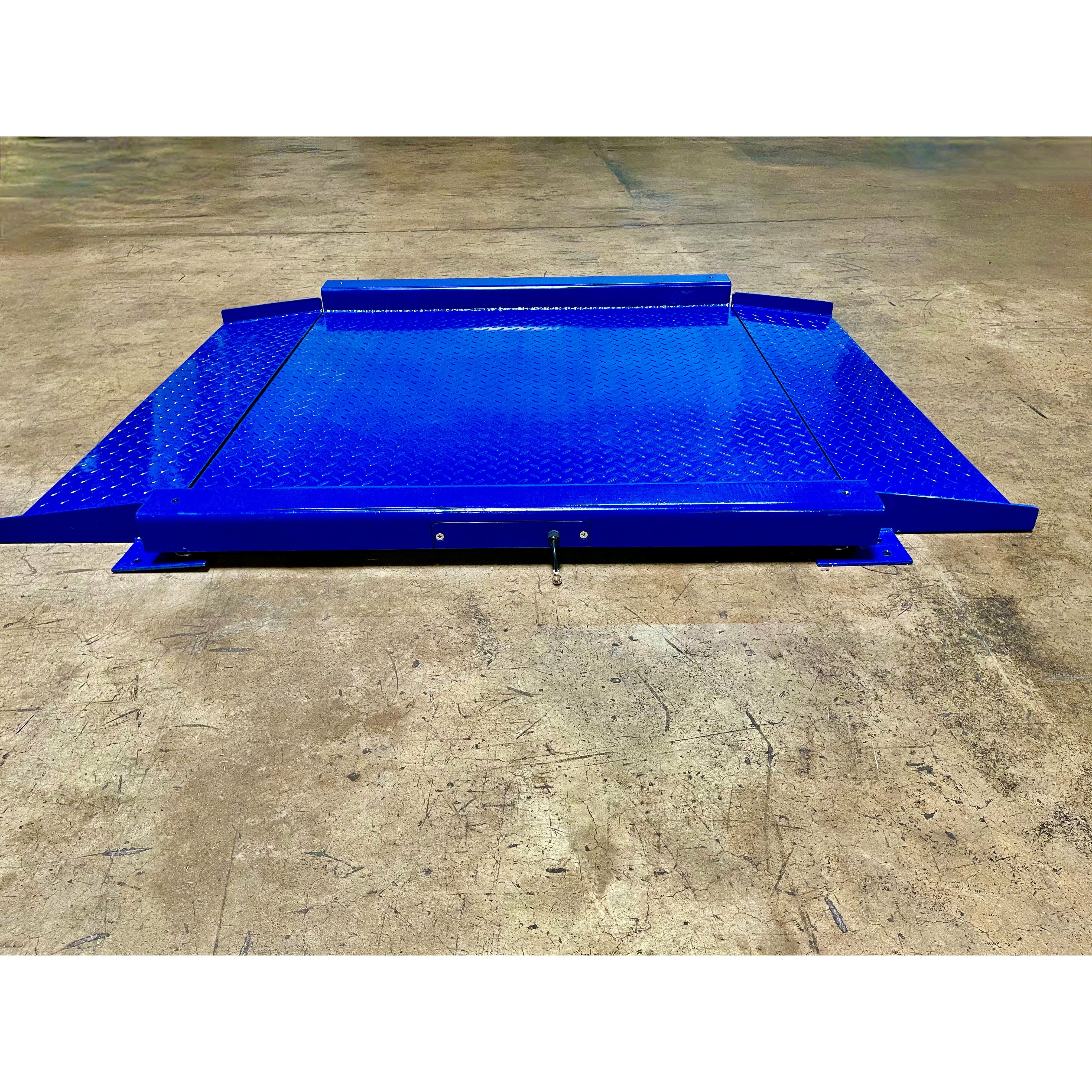

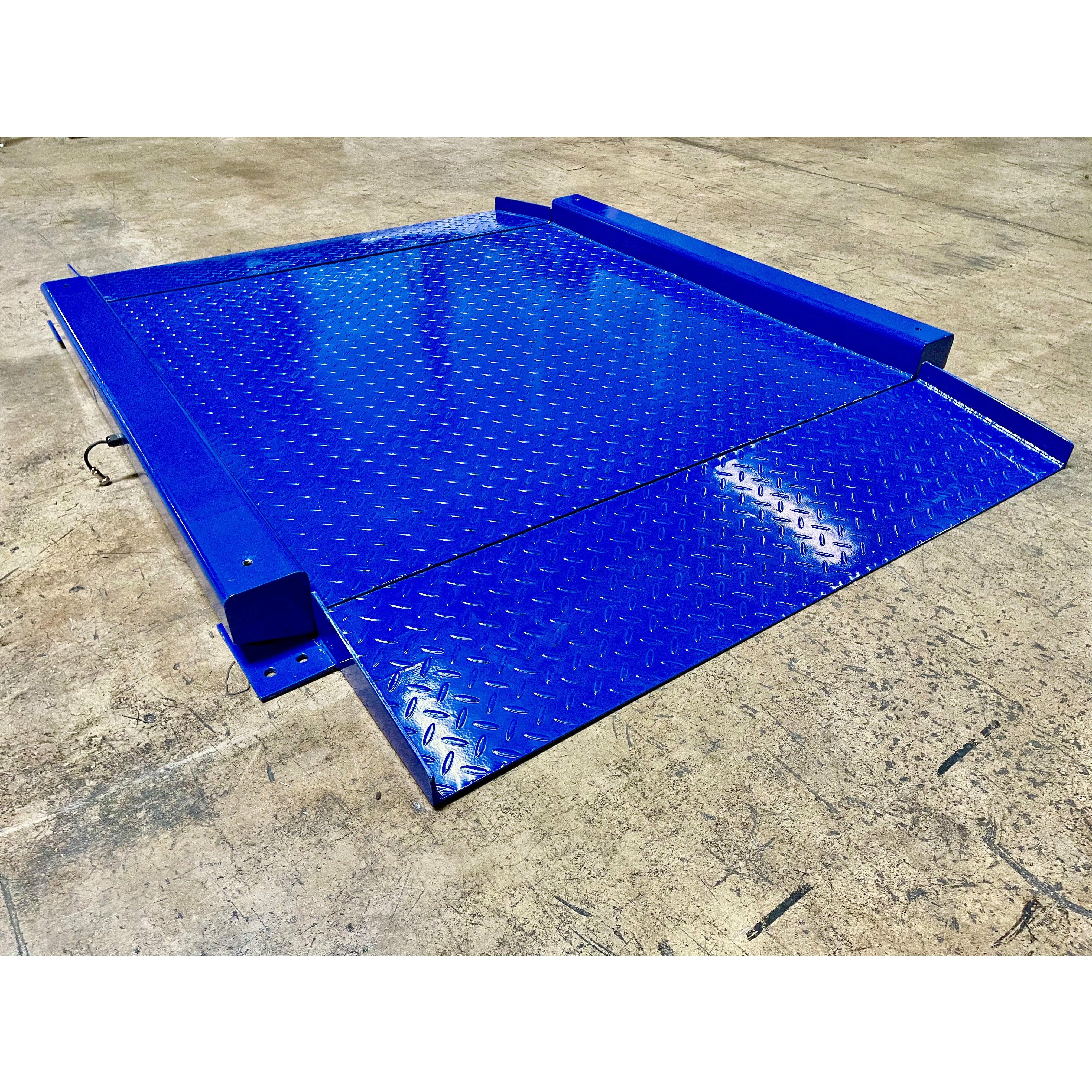

SellEton’s SL-917-R Drum Scale is your seamless solution. Designed for simplicity and efficiency, this ultra-low-profile drum scale has attached ramps that facilitate easy roll-up access, eliminating the strain of lifting heavy barrels onto the scale platform. Its rugged construction and anti-skid diamond plate surface ensure stable and accurate weighing, making it indispensable for industrial environments.

Key Benefits:

• Ease of Use: Roll barrels up quickly with super-low ramps designed for effortless access to the weighing platform.
• Durability: Rugged, heavy-duty construction makes this drum scale ideal for portable and permanent installations.
• Versatility: Suitable for various industrial applications with live side rails that accommodate bulky cargo.
• Safety First: The anti-skid tread plate deck prevents slippage and accidents during operations.

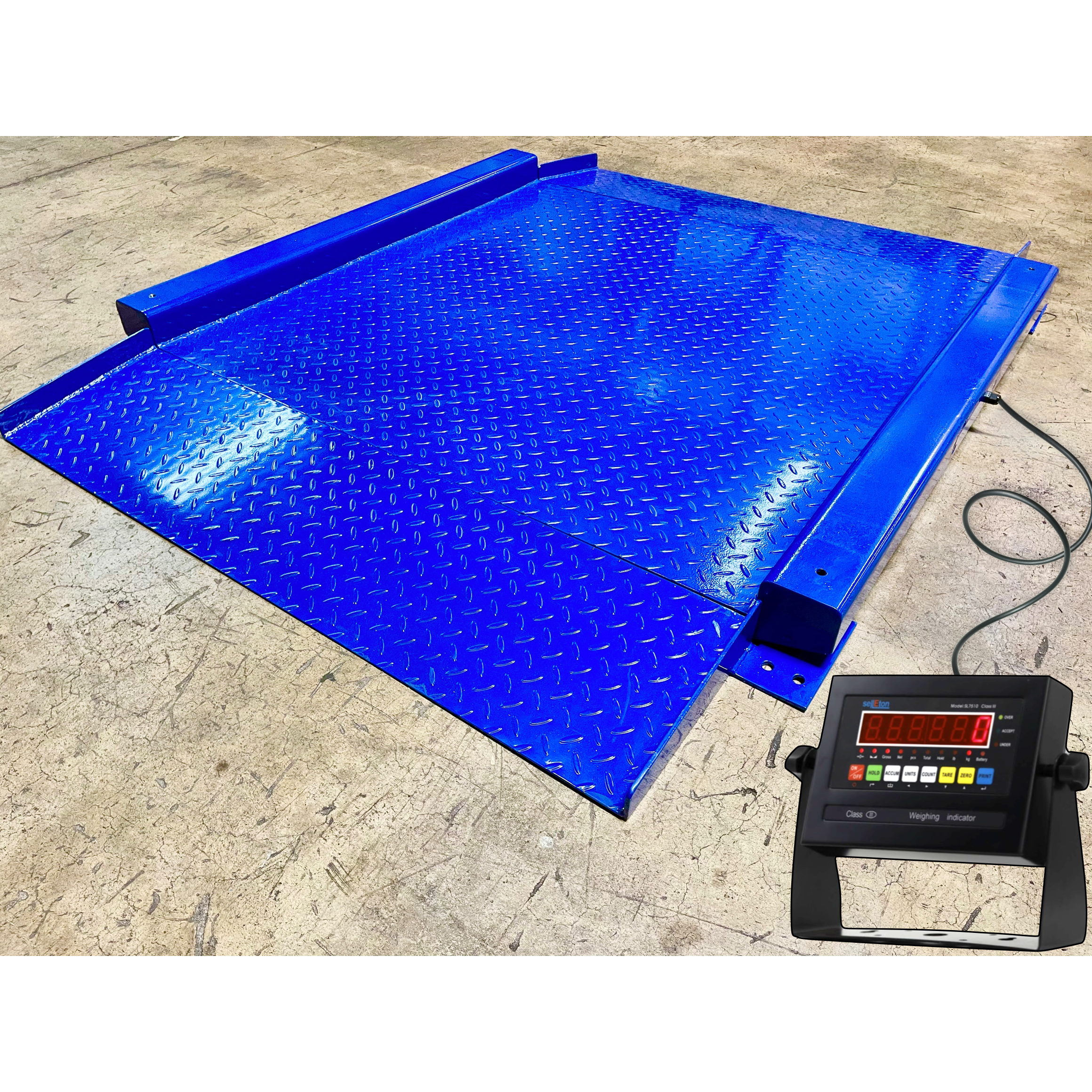

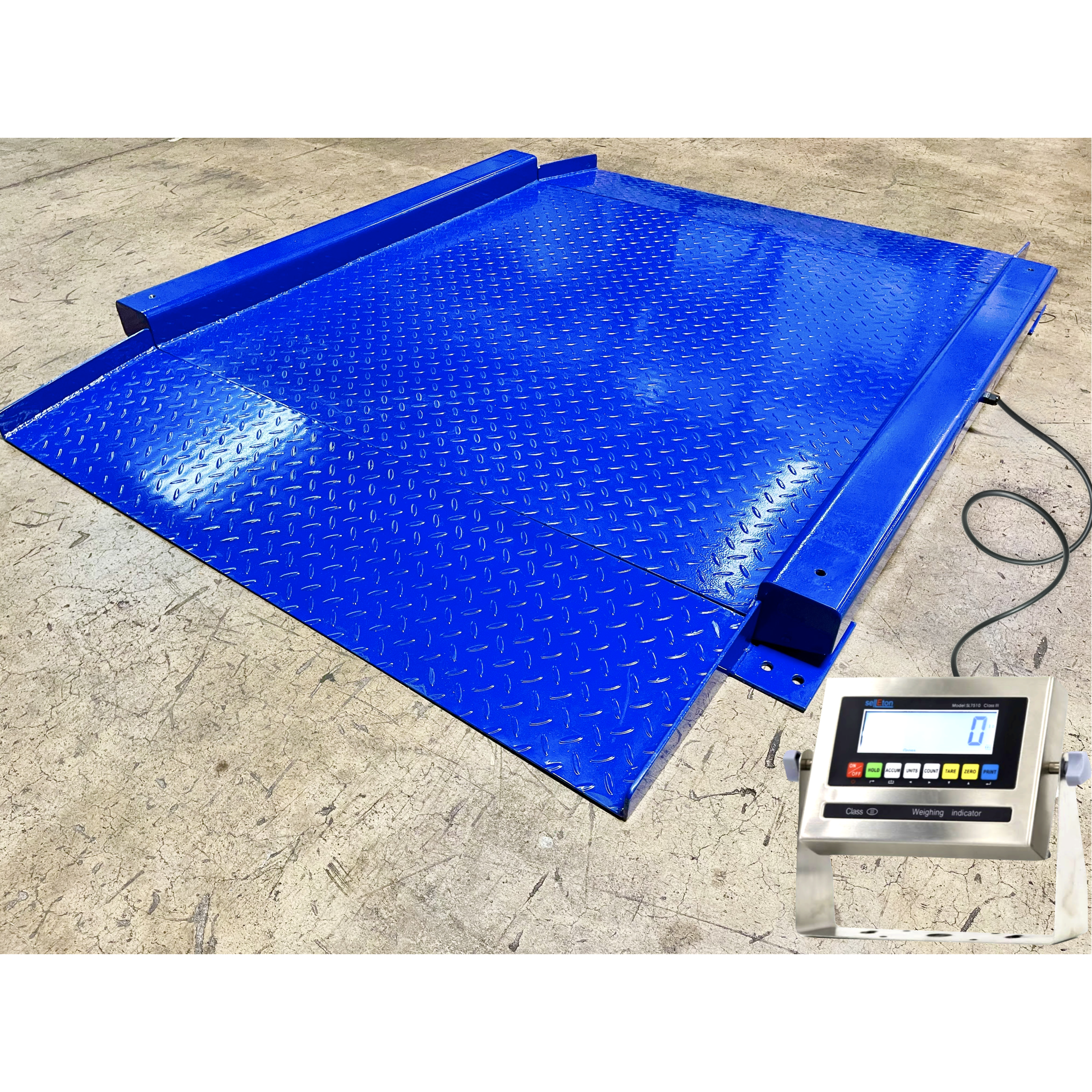

• Convenience: Comes with a clear, easy-to-read indicator equipped with a rechargeable battery.
• Explosion-Safe Option: An explosion-safe version is available for use in hazardous environments.
• Multiple Sizes: To accommodate different barrel dimensions and weights, the platform is available in three sizes (30" x 30", 36" x 36", and 48" x 48").
• Reliable Power: It comes with a , selectable between lb and kg, powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-917-R Drum Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a  for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from  for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our  to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from  to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Cable Length Options: It comes with a standard 15-foot cable, but custom lengths are available in 50-foot and 100-foot lengths for extended reach and versatility.

• Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

When you choose SellEton's SL-917-R NTEP Low Profile Drum Scale, you’re not just getting a reliable and efficient weighing solution but setting a new standard in your operational workflow. Experience the relief of streamlined processes and the confidence of precise barrel measurements. Elevate your industrial operations with this dependable drum scale and watch your efficiency soar.

Please  our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
