SL 934 20x10 Truck Scale - Heavy Duty Industrial Weighing Equipment for Non-NTEP Reference Weight (Ideal for Warehouses, Logistics & Shipping Centers)

Are you tired of inaccuracies and inefficiencies in tracking and managing vehicle loads?

Our SL-934-20x10 Truck Scale offers a reliable solution to your weighing needs. Designed for durability and precision, the SL-934-20x10 Truck Scale from SellEton ensures high-performance weighing for commercial use. This heavy-duty, low-profile scale is perfect for various applications, from logistics and warehousing to weighing trucks directly. Equipped with safety-enhancing yellow guide rails and easy-access ramps at entrances and exits, it simplifies the process, saving time and increasing efficiency.

Key Benefits:

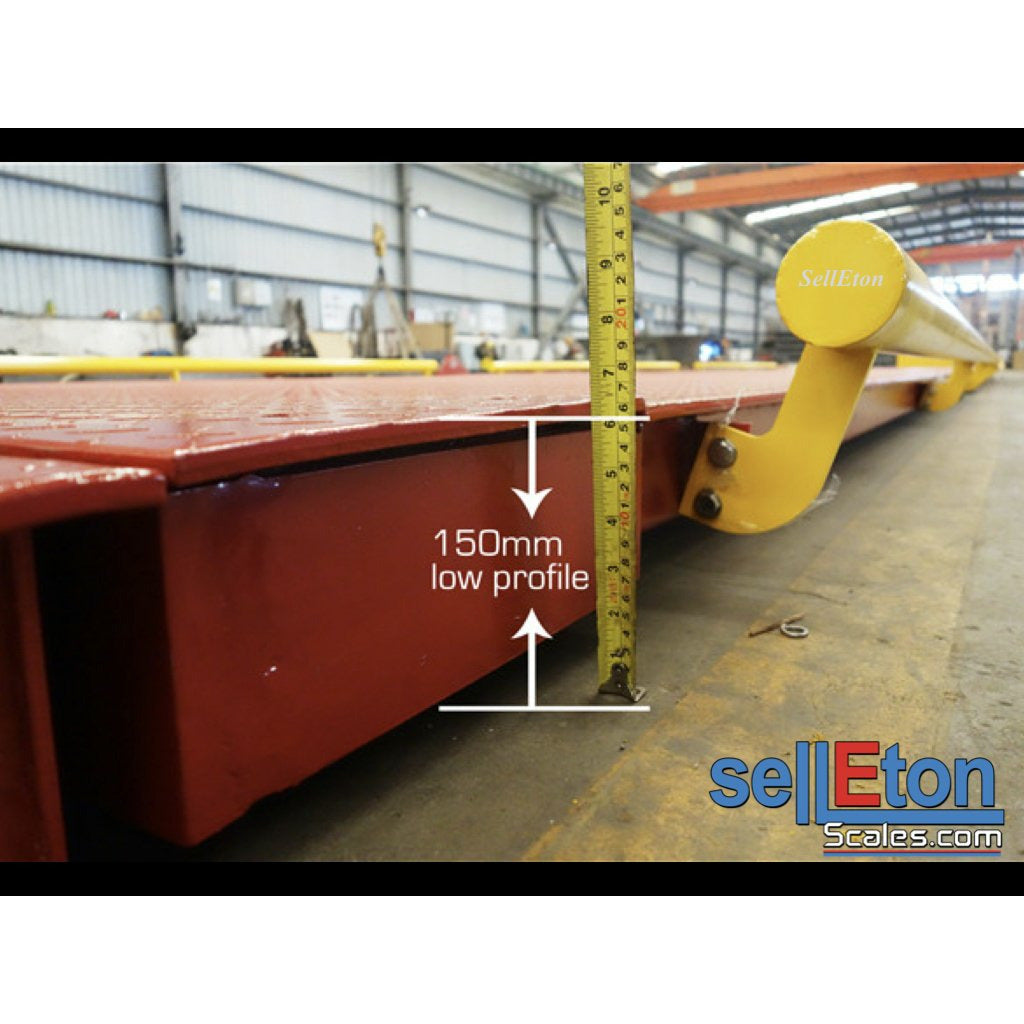

• Robust Design: This platform measures 10' (L) x 20' (W) x 8.5" (H) and is built to withstand heavy-duty use and ensure long-lasting reliability.
• High Capacity and Accuracy: Can handle up to 100,000 lbs with a precision of 20 lbs, making it ideal for commercial weighing tasks.
• Enhanced Durability: This kit includes six premium alloy steel nickel-plated load cells, which are watertight (IP67) for optimal performance in wet conditions.
• Safety and Accessibility: Integrated overload protection and yellow safety rails enhance operational security, and two ramps facilitate seamless truck access.
• Advanced Features: Comes with a stainless steel indicator, a printing system, and a scoreboard, offering a comprehensive weighing solution.
• Reliable Power: It comes with an  that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

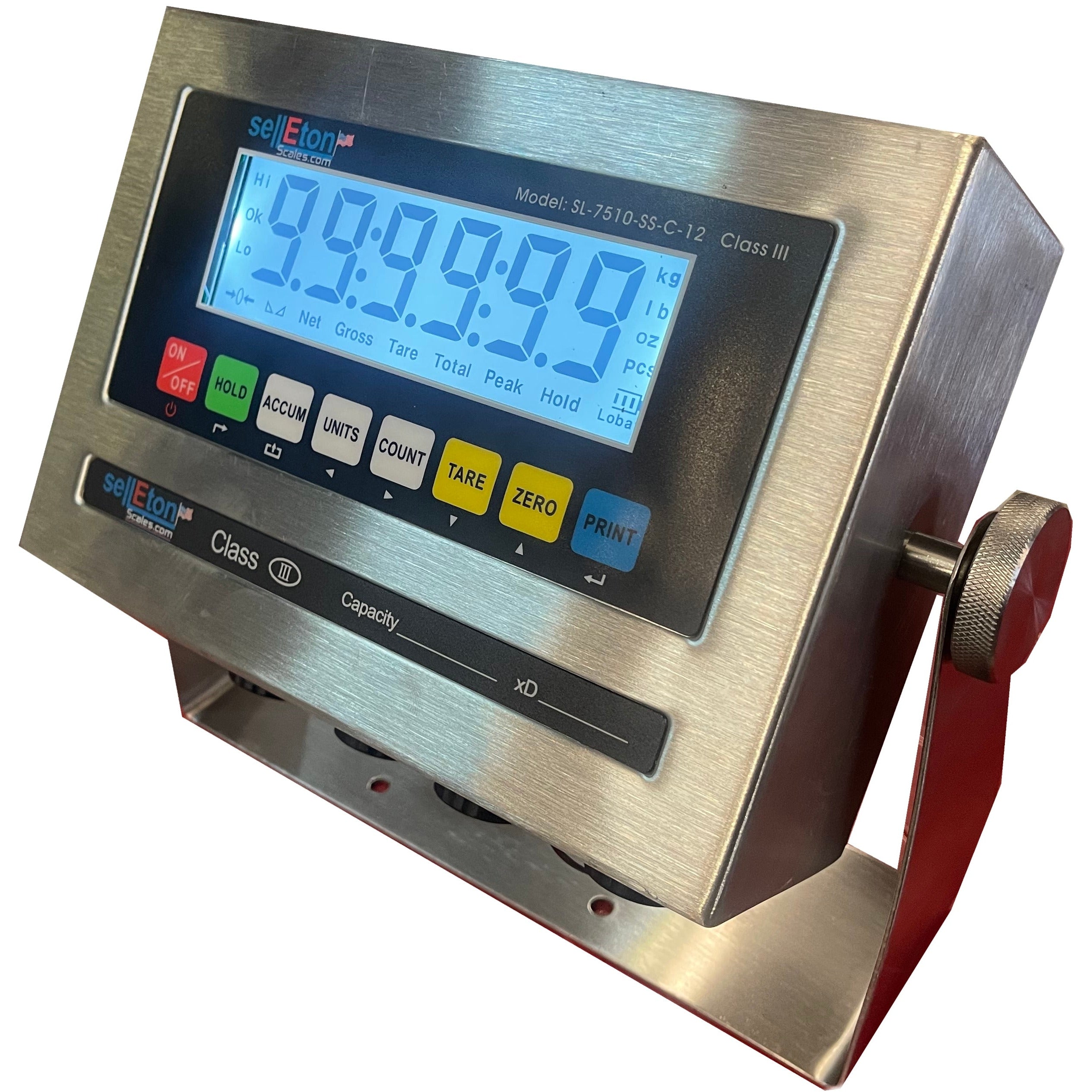

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1" LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions.
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-934-Truck Cargo Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a  for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from  for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our  to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from  to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Experience the confidence and peace of mind of knowing your truck loads are measured accurately and efficiently. With the SL-934-20x10 Truck Scale, streamline your operations and enhance productivity. Choose from three available sizes to perfectly fit your space and meet all your commercial weighing needs with our high-quality and certified truck weight scales. Elevate your business standards with SellEton's trusted and reliable truck/vehicle scales.

Please  our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
