Are you struggling to find a quick and safe way to weigh heavy cargo using your current equipment?
The SellEton SL-960 Pancake Scale is explicitly designed to streamline your weighing process, ensuring fast, secure, and precise measurements every time. With its impressive 20,000-lb capacity and spacious 10' x 10' platform, this scale effortlessly accommodates a variety of heavy cargo, from pallets to crates.
Key Benefits:
- Ultra-Low Profile: Features a low 3” ramp height, making it accessible for forklifts, pallet jacks, and cargo dollies without needing a scale pit.
- Anti-Slip Safety: Enhanced with a diamond plate pattern on the ramps to prevent slippage and ensure safety during loading and unloading.
- Versatile Placement: Engineered for durability in indoor and outdoor environments and suitable for above or in-ground installation.
- Robust Construction: The twin module steel deck, with a durable epoxy paint finish, withstands heavy use and offers long-term reliability.
- High Capacity Weighing: Can handle up to 20,000 lbs, perfect for heavy-duty weighing needs in logistics, warehousing, and freight operations.
- Ease of Use: Simple setup and relocation with wrap-around ramps for easy drive-on and drive-off eliminate the need for custom installations.
- Reliable Power: It comes with an that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

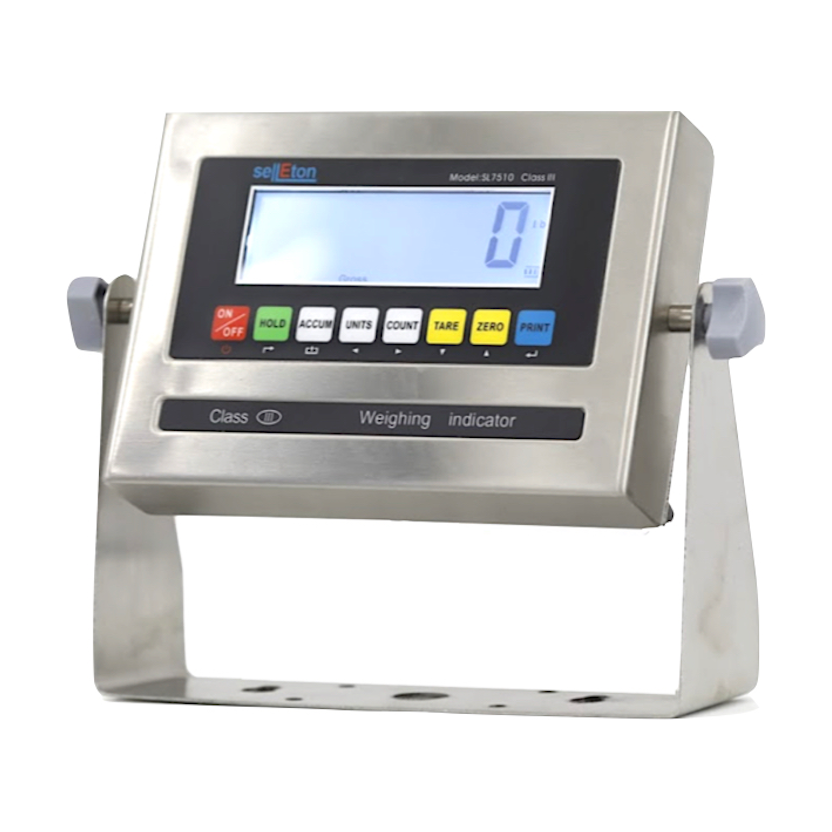

Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
- Additional Features: Power saving mode, automatic date, and time update, manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
- Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-960-Pancake Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
- Indicator Stands: Select from to ensure your indicator is optimally positioned for ease of use and visibility.
When you choose the SellEton SL-960 Heavy Duty Ultra Low Cargo Pancake Scale, you're not just purchasing a scale but investing in a seamless, efficient workflow. Feel the satisfaction of speeding up operations with reliable, high-quality measurements every time. Opt for SellEton’s certified truck weight scales and transform how you handle heavy cargo today. Enjoy the peace of mind from knowing your scale is up to the task, no matter how heavy the load.
Please our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a , , & . This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
