Struggling with accurate weight measurements in challenging industrial environments?
The SellEton SL-800-3'x3' NTEP Heavy Duty Floor Scale is your reliable solution for precision weighing, even under the most demanding conditions. Ideal for various industries, this high-quality multi-purpose industrial floor scale ensures compliance and operational efficiency.
Key Benefits:
- Durable Design: Heavy-duty industrial build with a tube-channel frame withstands harsh environments, extending the life of your scale.
- Versatile Weighing Options: Comes with 4 NTEP alloy steel shear beam load cells and the option for top or side loading, adapting to different space and usage requirements.

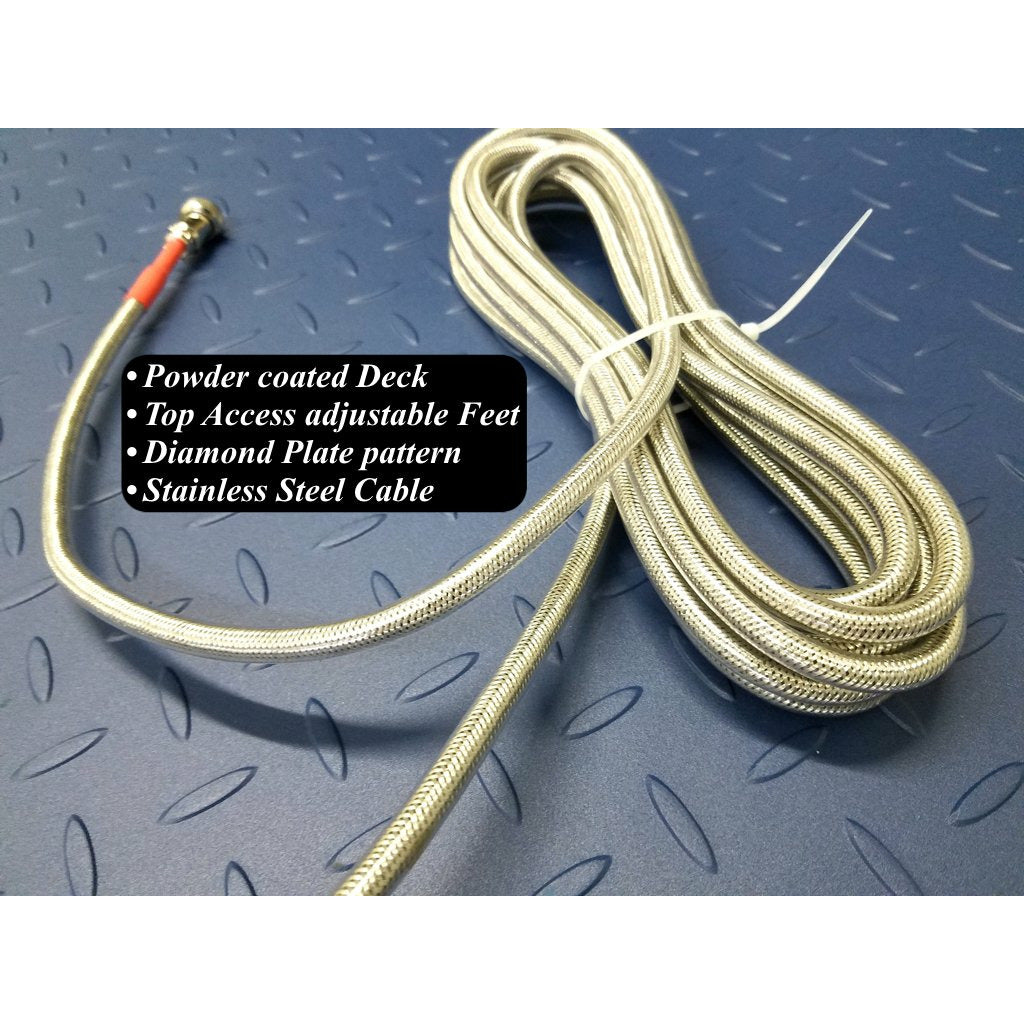

- Enhanced Connectivity: This kit includes a stainless steel junction box with signal trim board and a 15-foot load cell cable for easy setup and maintenance.

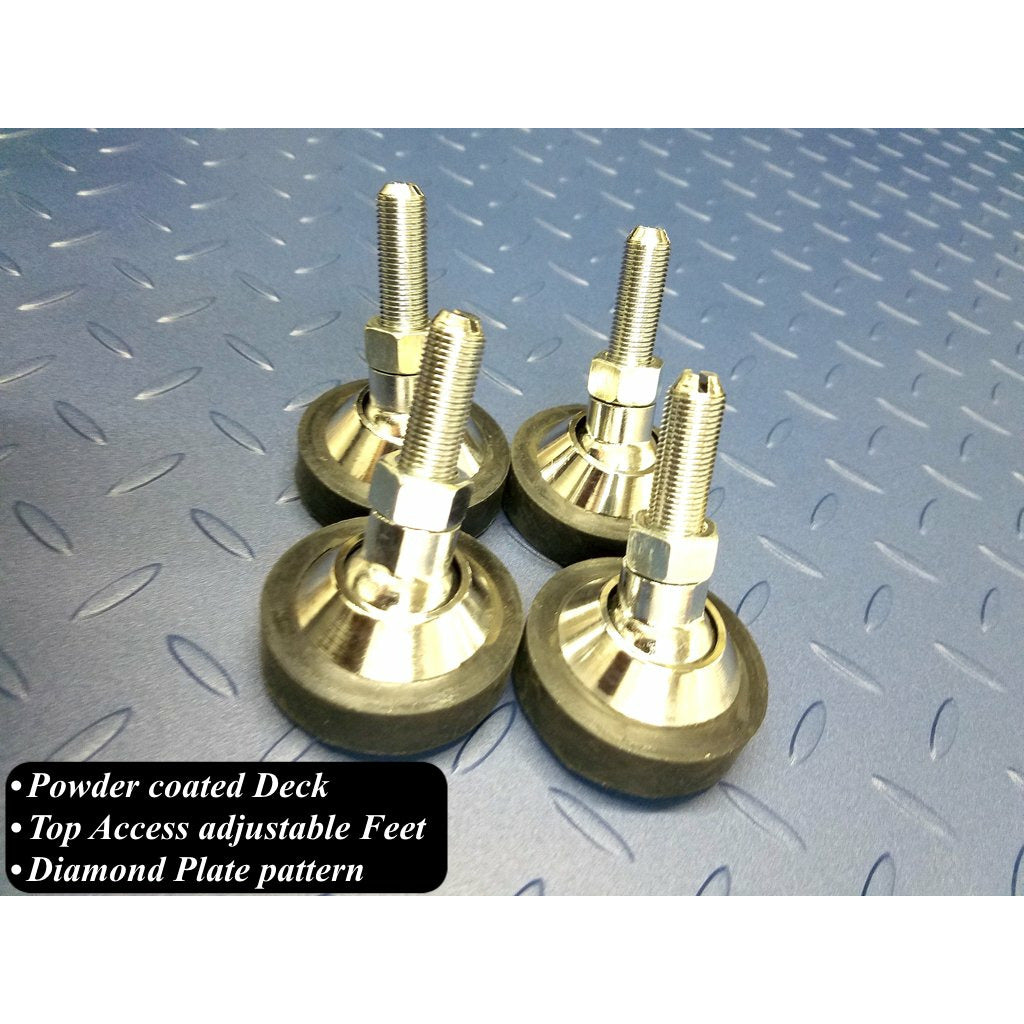

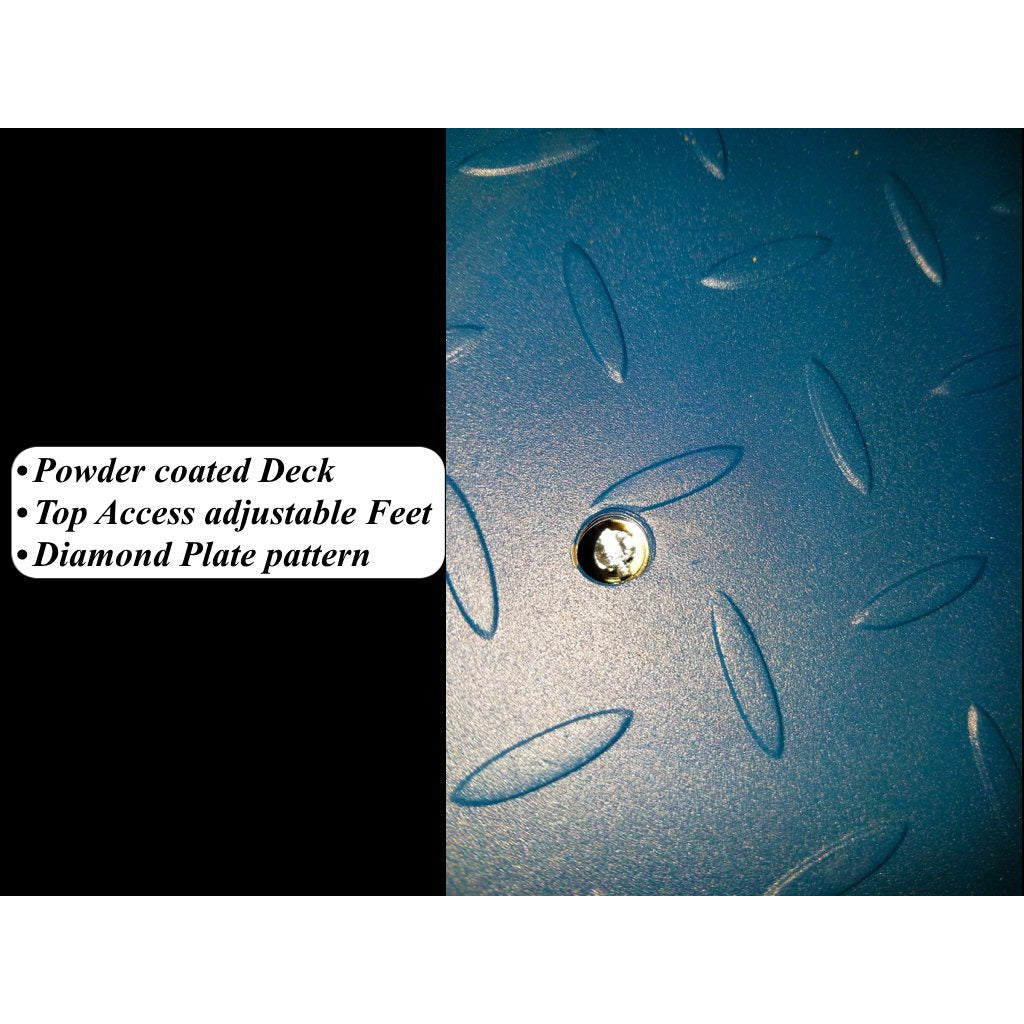

- Reliable Readings: Its rugged diamond deck treadplate and adjustable swivel steel feet ensure stable, accurate measurements.
- Reliable Power: It comes with a , selectable between lb and kg, powered by a rechargeable battery for continuous operation.
- NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
- Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
- Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
Pit-Frame Installation: Choose between a permanent, installation or versatile for flexible placement.
Data Collection Software: Utilize our to track and manage weight records efficiently and efficiently.
Ramp Access: Implement optional to facilitate simple and safe loading and unloading using carts or .
Indicator Stands: Select from to ensure your indicator is optimally positioned for ease of use and visibility.
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Once you integrate the SellEton SL-800 into your operations, the stress of inconsistent and unreliable data disappears. Enjoy the confidence that comes with dependable, precise measurements and the efficiency of a tool that keeps up with your work's pace. This scale not only solves your weighing problems but also adds a layer of professionalism to your business operations. With the SellEton SL-800, your industry demands are not just met—they are exceeded, ensuring your business runs smoother and more efficiently.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
