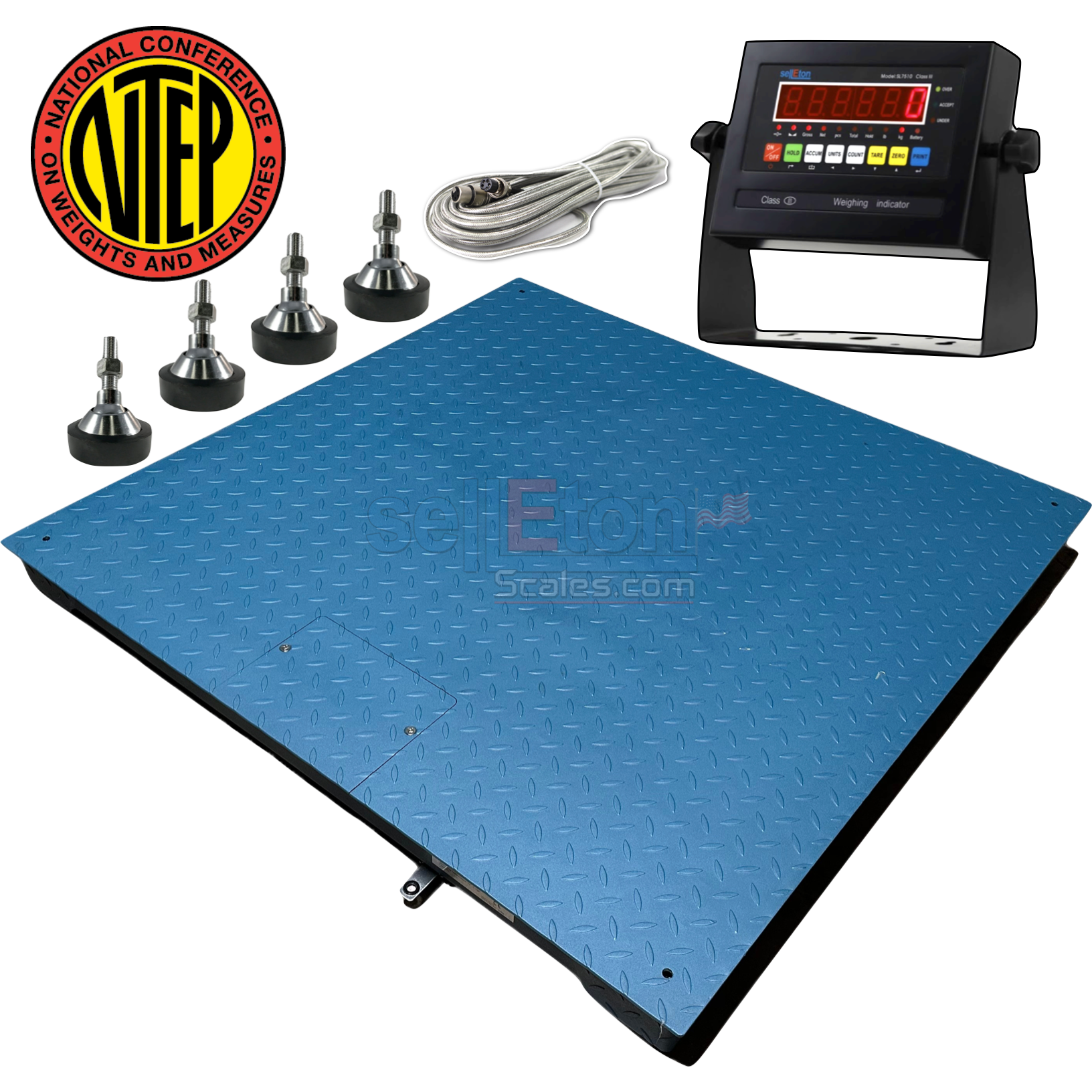

The SL-800 NTEP Certified Digital Floor Scale is here to streamline your operations and ensure accuracy in the most demanding environments. Designed specifically for industrial use, this scale combines robust construction with advanced features, making it easy to manage heavy loads without a steep learning curve.
Available Sizes:
- 24" x 24" (2'x2')
- 24" x 36" (2'x3')
- 36" x 36" (3'x3')
- 48" x 48" (4'x4')
- 48" x 60" (4'x5')
- 48" x 72"(4'x6')
- 48" x 96"(4'x8')
- 60" x 60"(5'x5')
- 60" x 84"(5'x7')
- 60" x 96"(5'x8')
- 72" x 72"(6'x6')
- 84" x 84"(7'x7')
Key Benefits:
- Robust Construction: Built with welded steel and a tread plate, ensuring durability and the ability to withstand harsh industrial conditions.
- High Capacity and Accuracy: Weigh capacities from 1000 lbs to 20000 lbs with precision, suitable for various industrial applications.
- Precision Weighing: This product features an NTEP-certified 6-digit, 1” display indicator with lb/kg selectable options for versatile and precise measurements.
- Surface Model Choices: Select from smooth or diamond plate surface models to match your industrial requirements.
- Long-lasting Reliability: Equipped with a 20’ long heavy-duty metal shielded cable that connects to the indicator, enhancing the scale’s durability and functionality.
- Easy Integration: Includes a built-in RS-232 communication port, allowing seamless connectivity with other devices and systems in your workflow.
- Superior Overload Protection: Offers 200% overload protection to safeguard against damage from excessive weight, providing longevity and consistent performance.
- Maintenance and Cost Efficiency: Designed to require minimal maintenance, saving on upkeep costs and reducing downtime in rigorous industrial settings.
- NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
- Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
- Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:

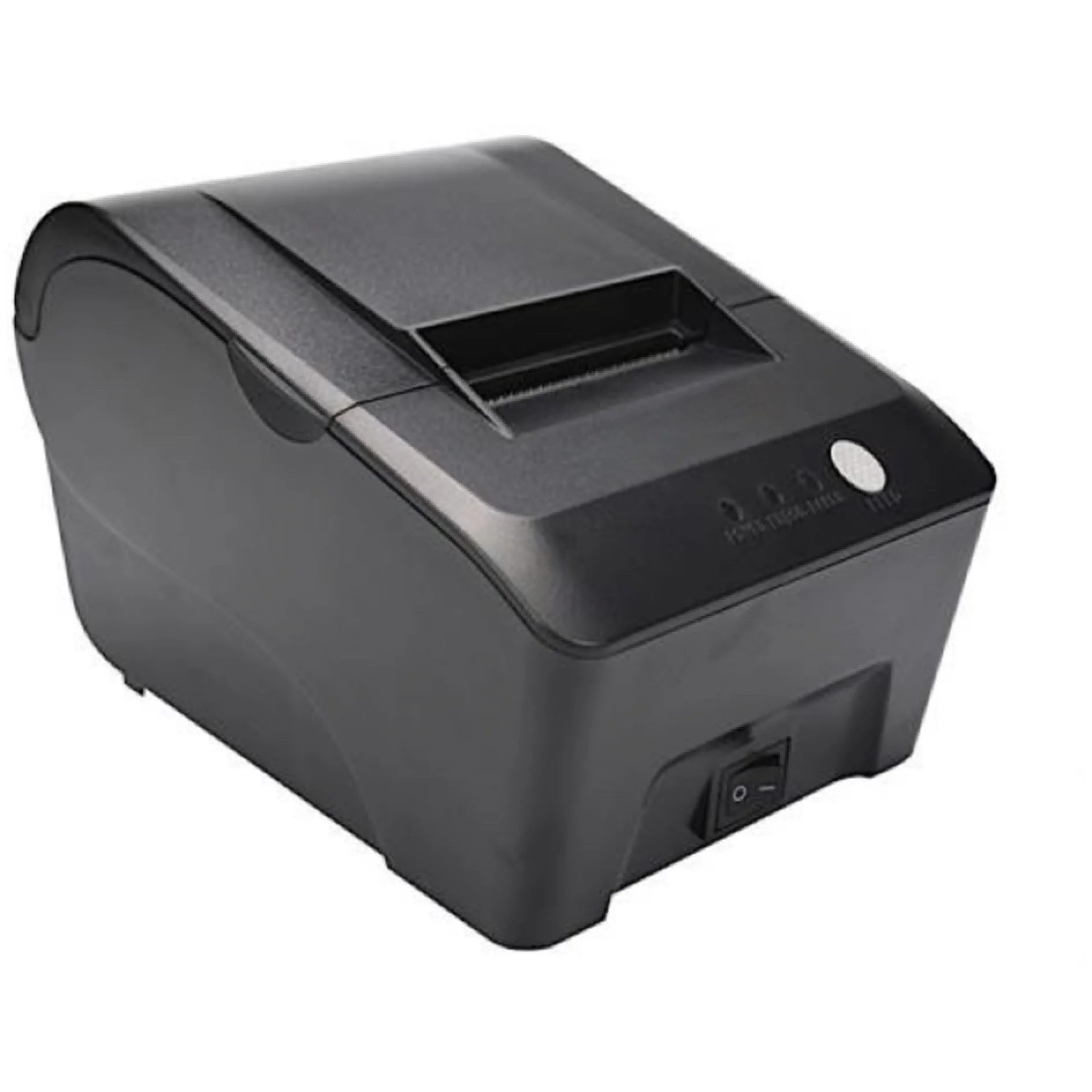

Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
Pit-Frame Installation: Choose between a permanent, installation or versatile for flexible placement.
Data Collection Software: Utilize our to track and manage weight records efficiently and efficiently.
Ramp Access: Implement optional to facilitate simple and safe loading and unloading using carts or .
Indicator Stands: Select from to ensure your indicator is optimally positioned for ease of use and visibility.
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require , SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.
By integrating this high-quality, versatile scale into your operations, you’ll immediately benefit from streamlined processes and accurate results. The reliable construction and thoughtful design provide peace of mind, allowing you to focus on productivity without the hassle of frequent maintenance. With the SL-800, elevate your operational efficiency and embrace a solution that scales with your business needs.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
