The SellEton SL-800 Floor Scale offers a robust solution for industrial environments where precision and durability are key. Certified by the National Type Evaluation Program (NTEP), this intrinsically safe floor scale meets rigorous standards for commercial use across most states—making it a legal requirement for trade. Not only does it withstand heavy-duty use with its enhanced structural integrity, but it also provides you with the legal backing needed to handle disputes with logistics companies confidently.
Key Benefits:
- Legal for Trade: NTEP approval means this scale is suited for all commercial purposes, essential for businesses in 46 states.
- High Capacity Options: Choose from a 2' x 2' scale with a 1000 lb capacity or a 4' x 4' scale capable of handling up to 5000 lbs.
- Precision Weighing: With accuracy down to .2 lb and 1 lb respectively, you can trust the readings down to the finest details.
- Durable Construction: More tubing in the scale’s structure ensures it can withstand intensive industrial use.
- Ease of Use: It features a low profile (3.5 inches) for easy loading and unloading, and it’s plug-and-play with minimal setup required.
- Enhanced Safety: Equipped with 200% overload protection to safeguard against unexpected load increases.
- Reliable Components: This product includes NTEP-certified load cells, a durable junction box, and an LED indicator with a stainless steel braided cable for extended durability.
- Versatile and Reliable: Features an with multiple weighing units (lb/kg; g/oz/lb) and a rechargeable battery for uninterrupted operation.
- NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb(LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions.
- Additional Features: Power saving mode, automatic date and time update, ability to modify gravity based on different geographical locations, 100% manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells, operates on 110V AC adapter (included), mounting bracket and hardware included.
Indicator Specifications:
- Display: Available in LCD or LED; features a 1-inch x 6-digit numeric display.
- Units: Supports primary units of lb and kg, with additional options for oz and g (LCD only).
- Accuracy Class: Rated at 5,000 e.
- Resolution: Offers 120,000 dd for industrial use and 10,000 dd as per HB44 standards.
- Excitation Voltage: Standard 5V DC.
- Output Current: Maximum of 120 mA.
- Excitation Circuit: 5 VCD with 4 wire connections.
- Load Cell Compatibility: Supports up to 6 load cells with a maximum of 350 Ω each.
- Load Cell Excitation: 5 ± 0.5VDC.
- Display Resolution: Capable of 30,000 with ADC (Analog-to-Digital Converter) of 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity (Internal): 0.3 μV/d.
- Input Voltage Range: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz.
- Power Consumption: 5W @ 9VDC.
- Operating Temperature: Ranges from 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24 bit A/D Sigma-Delta; 1,048,000 d.
- Display Increment: Selectable options of 1, 2, 5, 10, 20, 50.
- Decimal Point: Can be set to 0, 1, 2, 3, or 4.
- Conversion Rate: Processes 12 samples per second typically.
- Analog Signal Input Range: From 1mV/V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV per graduation.
- Measurement Range: 0~15mV.
- Auto Zero Tracking: Adjustable from 0 to 5 dd increments.

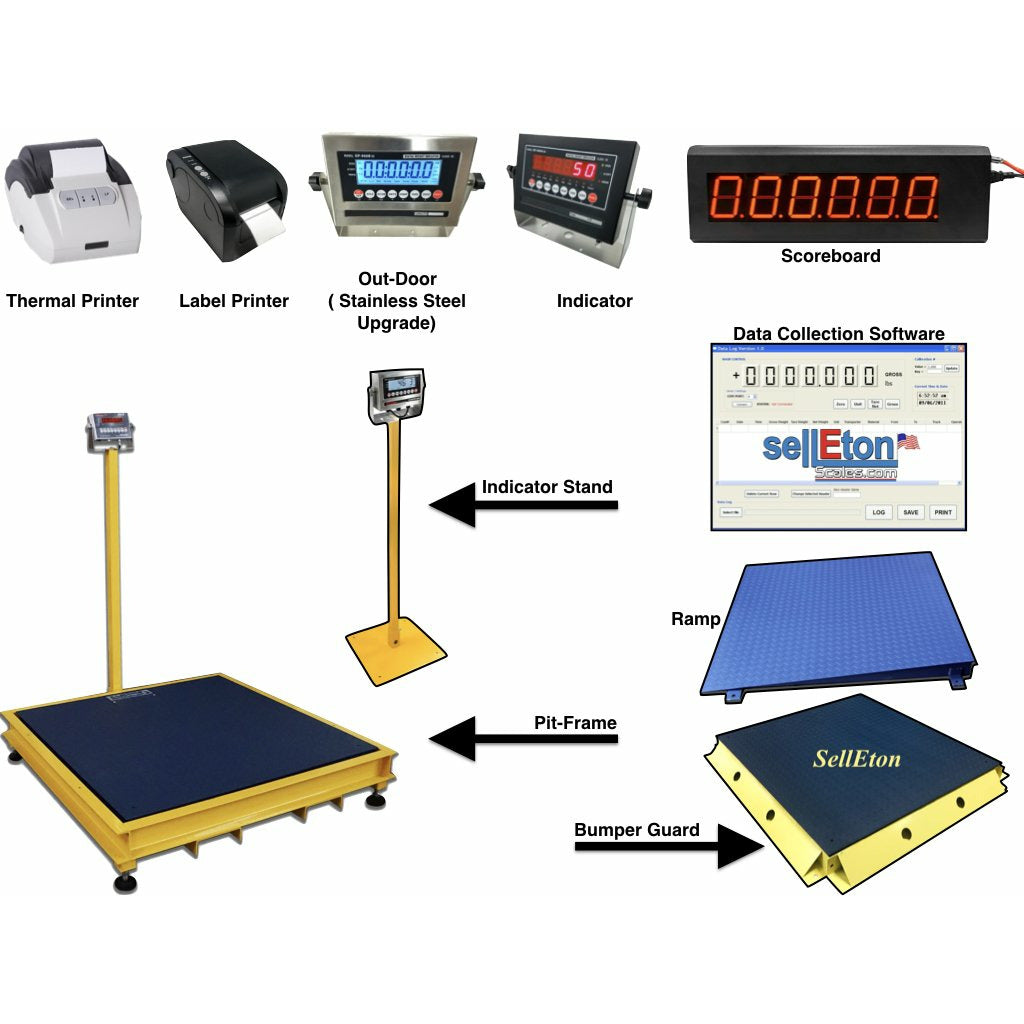

Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
Pit-Frame Installation: Choose between a permanent, installation or versatile for flexible placement.
Data Collection Software: Utilize our to track and manage weight records efficiently and efficiently.
Ramp Access: Implement optional to facilitate simple and safe loading and unloading using carts or .
Indicator Stands: Select from to ensure your indicator is optimally positioned for ease of use and visibility.
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Imagine the peace of mind you'll have knowing every shipment is weighed accurately, potentially saving thousands in revenue and enhancing your company’s reputation for reliability. With the SellEton SL-800 Industrial NTEP Floor Scale, take the step towards streamlined operations that stand the test of time and compliance. Invest in precision; invest in SellEton.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
