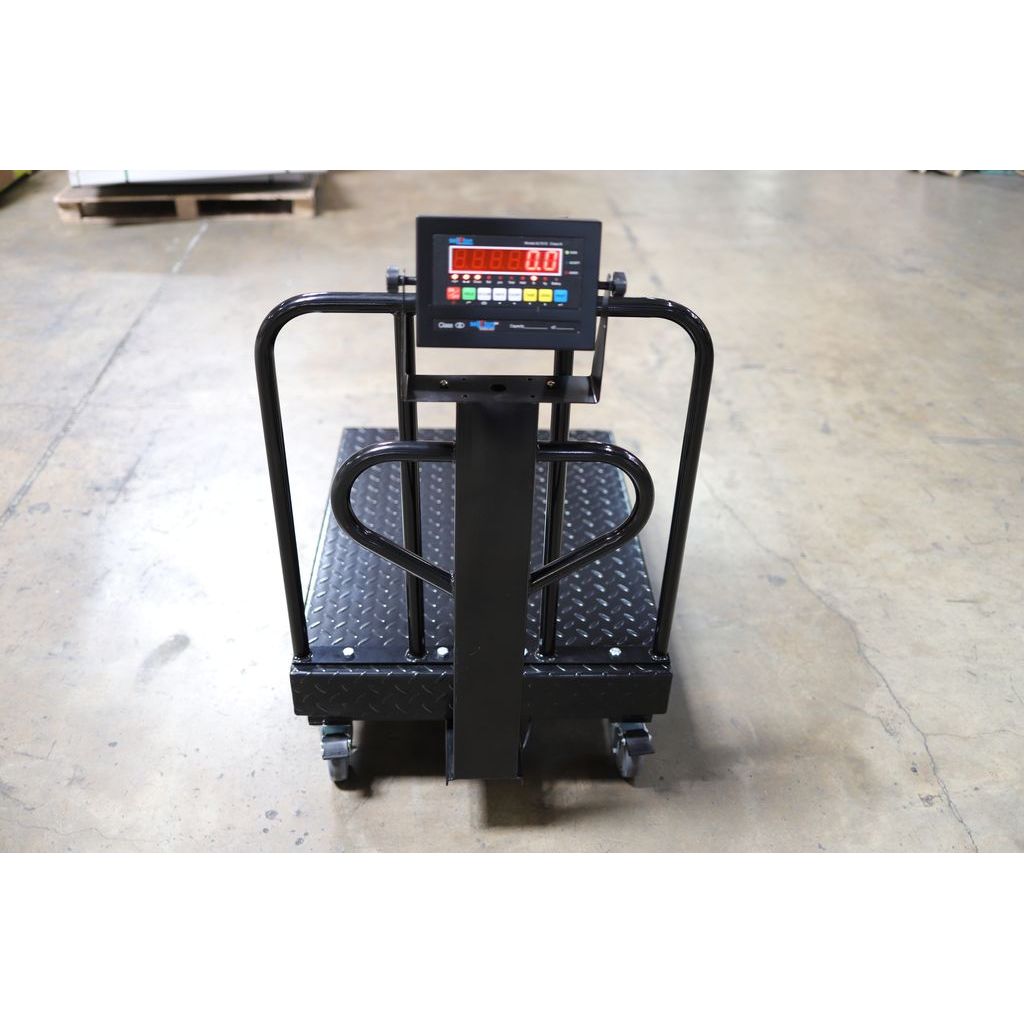

The SL-915-BWD NTEP Certified Bench Scale is here to revolutionize your workflow. Explicitly designed for high-traffic areas like shipping docks, outdoor markets, and manufacturing facilities, this robust diamond-plated bench scale combines durability with state-of-the-art technology to deliver speedy and precise weight measurements.
Available Models and Capacities:
- SL-91BWD-1824-500: 18”x24”, Cap: 500lb x 0.1lb
- SL-915BWD-2432-1000: 24”x 32”, Cap: 1000lb x 0.2lb
Key Benefits:
- Enhanced Mobility: The scale is equipped with built-in back rails and wheels, so you can easily relocate it as your workspace demands.
- Durability Meets Precision: The heavy-duty platform ensures longevity and consistent accuracy, even in rigorous industrial settings.
- Versatile Design: Ideal for various applications, from food processing to bulk sales, accommodating multiple industrial needs.
- High Resolution and Overload Protection: Offers detailed weight data with built-in safety features to prevent damage under excessive loads.
- Adaptable Setup: Select models allow the replacement of wheels with level feet, providing stability on uneven surfaces.
- Comprehensive Package: This package includes a legal trade indicator, load cells, columns, wheels, and necessary hardware, all pre-calibrated at the factory for immediate use.
- Reliable Power: It comes with a , selectable between lb and kg, powered by a rechargeable battery for continuous operation.
- NTEP Certified (Legal for trade): COC # 22-026
Indicator Key Features:
- Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
- Power Options: Includes an AC adapter; optional battery available.
- Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
- Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
- Alarms: Features overload/underload alarms and an automatic error warning alarm.
- Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
- Connectivity: Capable of connecting to a remote display and multiple printers.
- Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
- Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
- Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
- Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-915-BWD Bench Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
Printer Integration: Easily attach a for instant weight documentation, streamlining record-keeping processes.
Scoreboard Options: Opt from for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Imagine a workspace where every weighing task is streamlined and accurate, significantly boosting operational efficiency. With the SL-915-BWD Bench Scale, your weighing process will be faster and more reliable, and you'll also enjoy the peace of mind that comes with a top-tier, legally certified solution. Enhance your industrial operations today and experience the unmatched convenience and reliability of our wireless industrial floor scales.
Please our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
