Key Features:

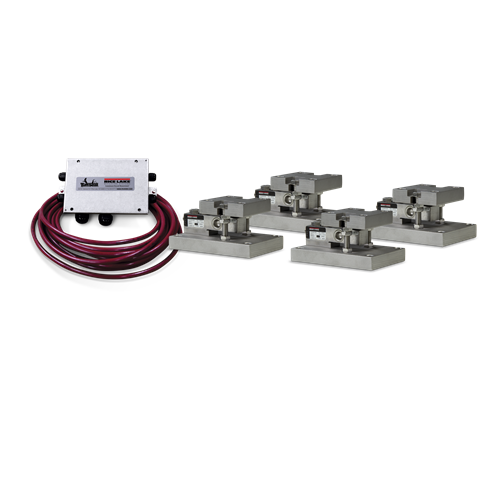

- Complete kit with three or four Rice Lake RLTM stainless steel mounting assemblies and RL32018S-T NTEP Certified welded-seal stainless steel load cells
- Capacity per module: 500 to 10,000 lb
- NTEP Certified load cells (1:5,000d, Class III multiple cell)
- Constructed from stainless steel for corrosion resistance and durability
- Overload and uplift protection to ensure stability and longevity
- Rocker pin loading design for enhanced accuracy in dynamic environments
- Integral lateral stops to prevent misalignment and ensure consistent weight measurements
- Ideal for:
- Lower capacity tank and vessel weighing
- Process control and batching applications
- Outdoor weighing applications requiring robust protection
The RLTM Stainless Steel Tank Weigh Module is a high-precision, durable weighing solution designed for low-capacity tanks, vessels, and process control applications. Featuring stainless steel construction with a welded-seal design, this module ensures long-lasting performance, even in harsh environments.
Utilizing a rocker pin-loading concept, the RLTM module delivers highly accurate weighing results, while its integral lateral stops help maintain load stability. Additionally, overload and uplift protection safeguards against excessive force, ensuring reliable performance over time.
Each Rice Lake RLTM module comes equipped with:
- One NTEP Certified RL32018S-T load cell
- A fully stainless mount with all necessary hardware
- A 30-ft hostile environment EL147HE SURVIVOR® load cell cable
This module is an excellent choice for industrial weighing applications requiring precision, safety, and durability.
Specifications
| Component | | Details |
|---|
| Capacity per Module |
| 500 to 10,000 lb |
| NTEP Certification |
| Yes, 1:5,000d, Class III multiple cell |
| Construction |
| Stainless Steel |
| Load Cell Type |
| RL32018S-T Stainless Steel Welded-Seal Load Cell |
| Protection Features |
| Overload & Uplift Protection |
| Load Cell Cable |
| 30 ft EL147HE SURVIVOR® Hostile Environment Cable |
| Mounting Type |
| Rocker Pin Loading with Integral Lateral Stops |
| Applications |
| Low-Capacity Tank & Vessel Weighing, Process Control, Batching |
RLTM Weigh Module Dimensions
| Rated Capacity (lb) | | A (in) | B (in) | C (in) | D (in) | E (in) |
|---|
| 500 - 2,500 |
| 3.77 | 2.59 | 2.62 | 6.50 | 7.50 |
| 5,000 |
| 3.99 | 2.83 | 2.62 | 6.50 | 7.50 |
| 10,000 |
| 4.27 | 3.08 | 3.88 | 7.50 | 8.50 |
*Custom sizes available upon request
Enhance Your Weighing System with the RLTM Stainless Steel Weigh Module
The RLTM Series Stainless Steel Tank Weigh Module is designed for industrial weighing applications that demand accuracy, stability, and durability. Its rocker pin loading design, overload protection, and stainless steel construction make it a top choice for low-capacity tank and vessel weighing.
Contact our team for more information on how the RLTM Series can improve your weighing operations!
