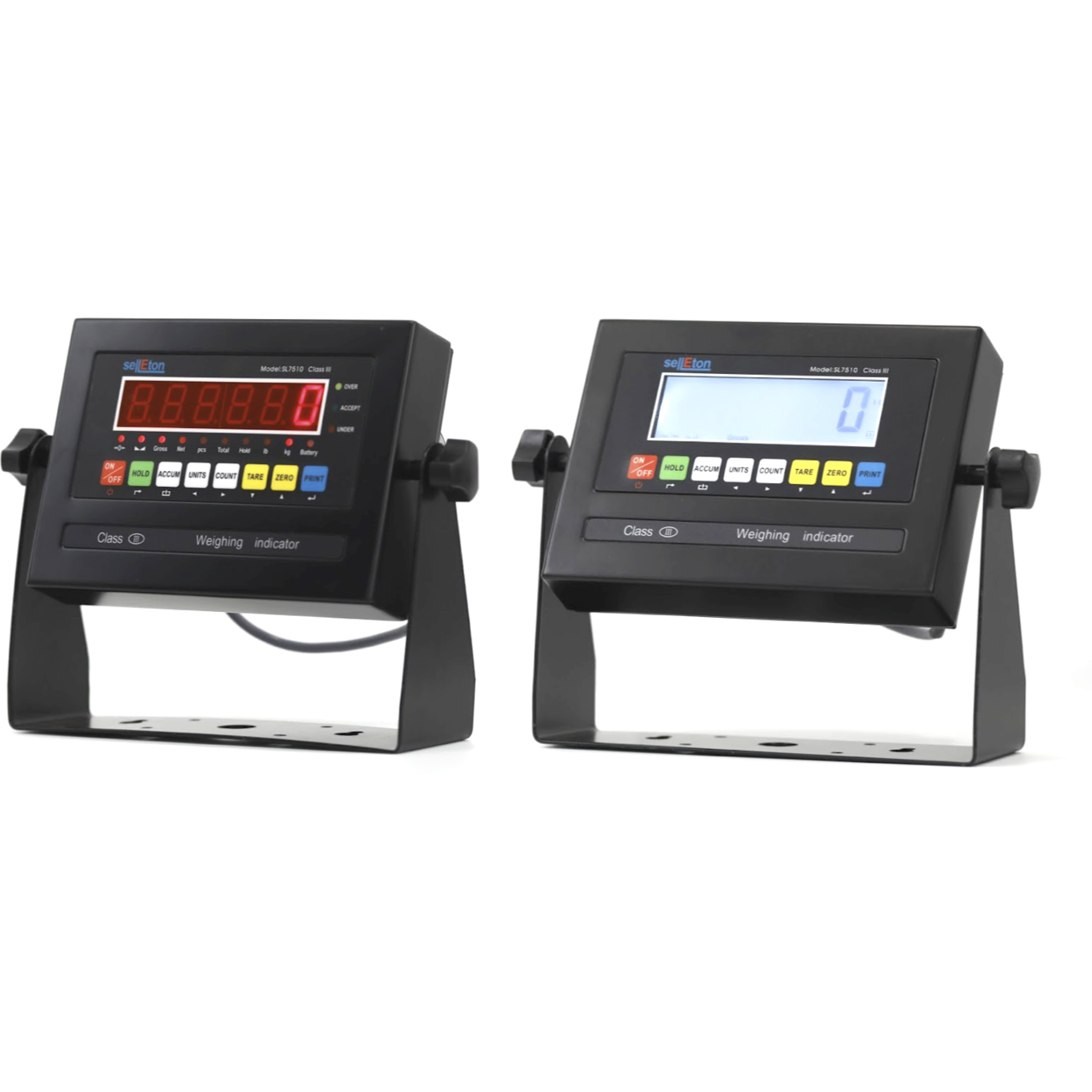

SellEton SL 7510 Digital Indicator - Mild Steel with RS232 Port | Optional Battery, 4-20mA or 0-5V Relay Output | Industrial Process Monitoring & Control Device

Are inconsistent and unreliable measurements affecting your workflow and productivity?

Elevate your measurement accuracy with the SellEton SL-7510 Mild Steel Indicator, designed to withstand varied environmental conditions while providing exceptional reliability. Whether in a robust industrial setting or for precise quality control, this indicator ensures accurate readings through its versatile design and feature set. Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel enclosures, the SL-7510 adapts effortlessly to harsh and controlled environments.

Key Benefits:

• Durable Options: Choose between Painted Steel, Stainless Steel, or waterproof IP67 NEMA 4X Washdown Stainless Steel enclosures.
• Flexible Powering: Use with the included AC adapter or add a battery for convenient portability.
• Versatile Units of Measure: Toggle between lb/kg and g/oz/lb (LCD only) to suit various industrial applications.
• Functional Diversity: Includes Gross/Tare/Pre-Set Tare/Zero functions, multiple Hold features, Count weighing, and Accumulation weighing.
• Connectivity and Compatibility: Features a Full Duplex RS-232 Serial Port for connectivity to remote displays and various printers.
• High Performance: Supports up to 6 350mA load cells and offers a display of up to 50,000 graduations, with NTEP approval for 5,000 divisions.
• Clear Interface: Equipped with a 1” LED or LCD display with backlight, alongside a splash-proof keyboard for ease of use.
• Smart Capabilities: Integrated Overload/Underload alarms, power-saving mode, automatic date and time updates, and error warning systems.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-7510 Indicator

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a  for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from  for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our  to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from  to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our , preventing ignition in explosive atmospheres.

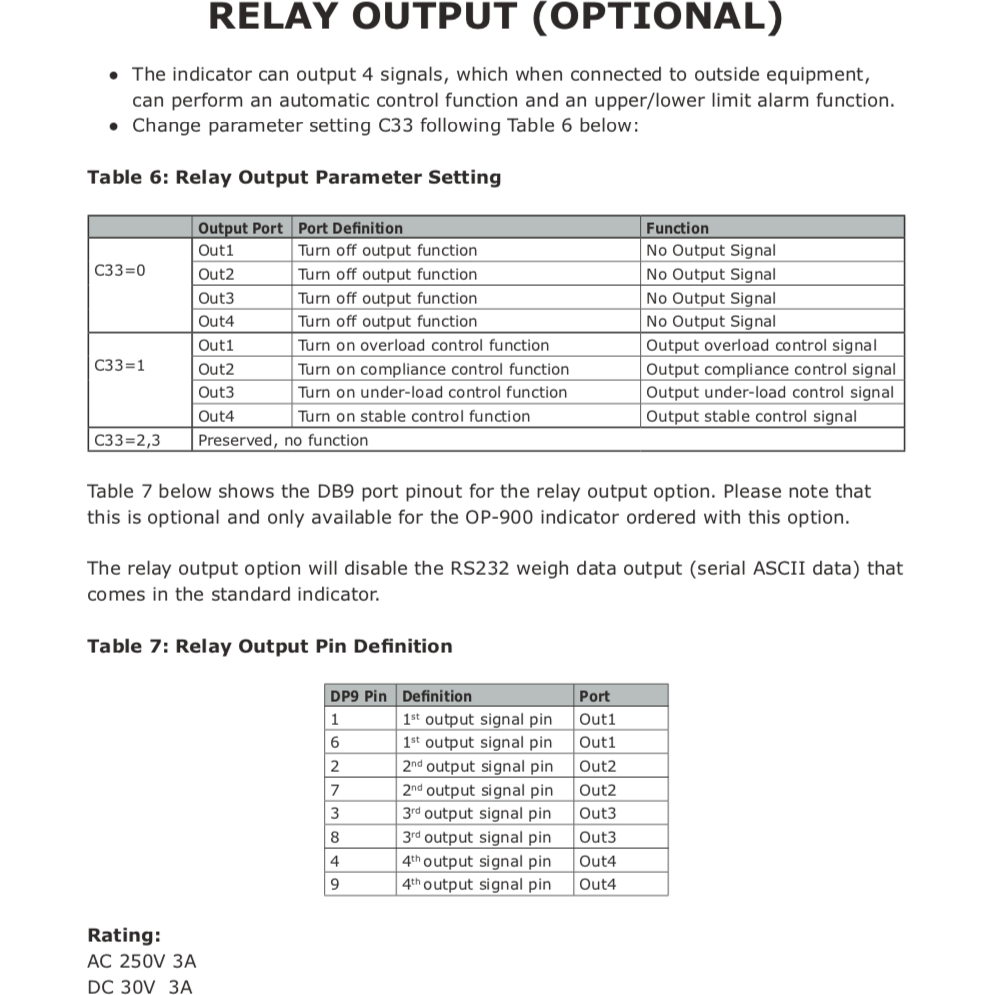

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Visualize a workflow where every measurement pushes your project toward precision and efficiency. With the SellEton SL-7510 Indicator, accuracy becomes the foundation of your operations, ensuring every measurement is a step towards excellence. This advanced weighing solution will enhance your operational capabilities and achieve consistent, reliable results.

Please  our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a ,  & . This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
