Key Features:
- Bright, full-color LED display with six high-intensity digits (4 in or 5 in height)
- Adjustable daylight/night intensity for optimal visibility
- Mirror mode (reverse image function) for flexible viewing options
- Weather-tight, durable enclosure with flip-down door for protection
- Flat-wall mountable with optional VESA or offset pole mount
- Multiple communication options: Ethernet TCP/IP, RS-232, RS-485, and 20 mA current loop
- Configurable baud rates from 1200 to 115200 for flexible data input
- Maximum viewing distance:
- 4-inch characters: Up to 100 ft (30 m)
- 5-inch characters: Up to 150 ft (46 m)
- 160° wide viewing angle for excellent readability
- Message display options: 1, 2, or 4 lines with decimal or comma indication
- Four digital I/O ports for external control
- Software-enabled time and date display with US or ISO format options
- Rugged IP66-rated mild steel enclosure for outdoor and industrial environments

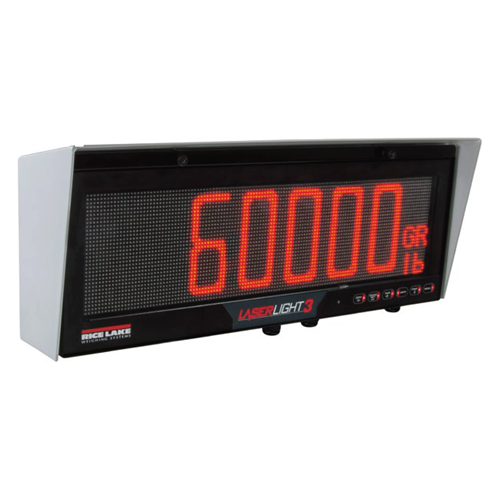

The Rice Lake LaserLight3™ Color Large-Display Weight Indicator provides superior visibility and versatility in industrial, outdoor, and washdown applications. The high-intensity color LED display ensures clear weight readings from distances up to 150 feet, even in direct sunlight or low-light conditions.
With multiple mounting options, integrated digital I/O ports, and Ethernet TCP/IP connectivity, the LaserLight3 is ideal for truck scales, industrial processing, and warehouse applications where large, easy-to-read displays are essential.
Specifications
| Specification | | Details |
|---|
| Power Input |
| 100 to 240 VAC, 50/60 Hz |
| Power Consumption |
| 120 W (120 VAC) |
| Output Interface |
| Ethernet TCP/IP, independently configurable echo port |
| Input Data Format |
| Baud rates: 1200 - 115200 (self-learning or configurable) |
| Update Mode |
| Continuous or out-of-motion |
| Digital I/O |
| Four I/O (5V logic) |
| Communication Ports |
| Ethernet TCP/IP, RS-232, RS-485, 20 mA current loop |
| Character Format |
| 7 or 8 data bits, even/odd/no parity, 1 or 2 stop bits |
| Viewing Distance |
| 4-inch: 100 ft (30 m), 5-inch: 150 ft (46 m) |
| Viewing Angle |
| 160° |
| Display Type |
| Bright outdoor color LED lamps, 128 × 32 pixels, 4 mm pitch |
| Display Features |
| Decimal/comma indication, weight display with units and mode |
| Keys/Buttons |
| Zero, Gross/Net, Tare, Units, Print, Menu |
| Time Display |
| 12 or 24-hour format (software enabled) |
| Date Display |
| US or ISO format (software enabled) |
| Operating Temperature |
| -40 °F to 120 °F (-40 °C to 49 °C) |
| Material & Rating |
| IP66, mild steel (powder-coated) |
| Weight |
| 20 lb (9 kg) |
| Warranty |
| Two-year limited |
| Approvals |
| NTEP 22-096, Measurement Canada AM-6210C |
LaserLight3 Dimensions
| Measurement | | Value |
|---|
| A |
| 23.00 in (584 mm) |
| B |
| 10.10 in (256 mm) |
| C |
| 8.73 in (222 mm) |
| D |
| 5.87 in (149 mm) |
| E |
| 5.00 in (127 mm) |
| F |
| 8.00 in (203 mm) |
| G |
| 25.02 in (636 mm) |
Why Choose the LaserLight3™ Large-Display Indicator?
The LaserLight3 provides unmatched visibility, connectivity, and durability, making it the perfect choice for large-scale industrial weighing applications. With full-color LED technology, wide viewing angles, and IP66 weatherproof construction, this display ensures reliable performance in any environment.
Upgrade your weighing system today! Contact us for more details or to place your order.
