Durable Mild or Stainless Steel Joints with Optional PTFE Lining
Key Highlights
Precision-engineered for flexible, aligned tension mounting
Available in mild steel or corrosion-resistant stainless steel
Compatible with ITCM hardware kits and suspended weighing assemblies
Provides electrical and mechanical isolation when PTFE-lined
Each rod end includes a jam nut for secure installation
Load capacities from 500 to 24,000 lb, with breaking strengths up to 96,510 lb
Select PTFE-lined options for reduced friction and extended life

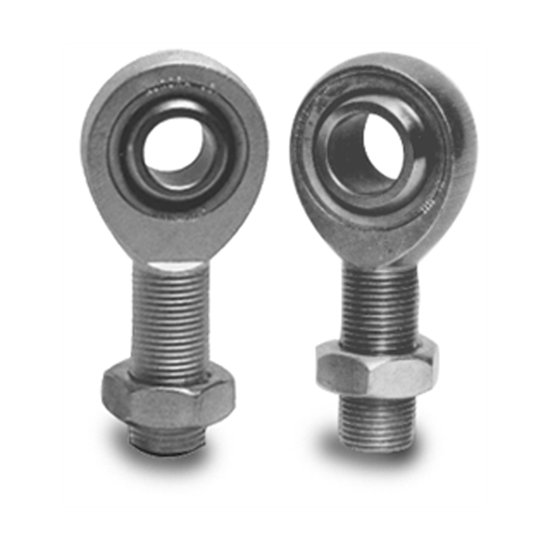

Rod End Ball Joints are a critical component in suspension-style load cell mounts, particularly in systems like the ITCM (Isolated Tension Cell Mount). These joints provide axial misalignment flexibility and allow for consistent and accurate tension force transmission—even in applications where angles and alignment may be less than perfect.
Manufactured from forged mild steel or stainless steel, these rod ends are built to handle industrial environments while offering exceptional load ratings. Choose from PTFE-lined joints for smoother rotation and reduced maintenance or non-lined for standard setups.
Each ball joint comes with a threaded stud, jam nut, and a spherical center to deliver optimal load cell protection, alignment, and mechanical performance.
Rod End Ball Joint Load Ratings
Mild Steel
Stainless Steel
Do not exceed the listed safe load.
Rod End Ball Joint Dimensions
Mild Steel
Stainless Steel
Upgrade your tension mounting systems with Rod End Ball Joints from SellEton Scales—engineered for precision alignment, durability, and electrical isolation. Choose from a wide range of sizes and materials to match your application needs.
